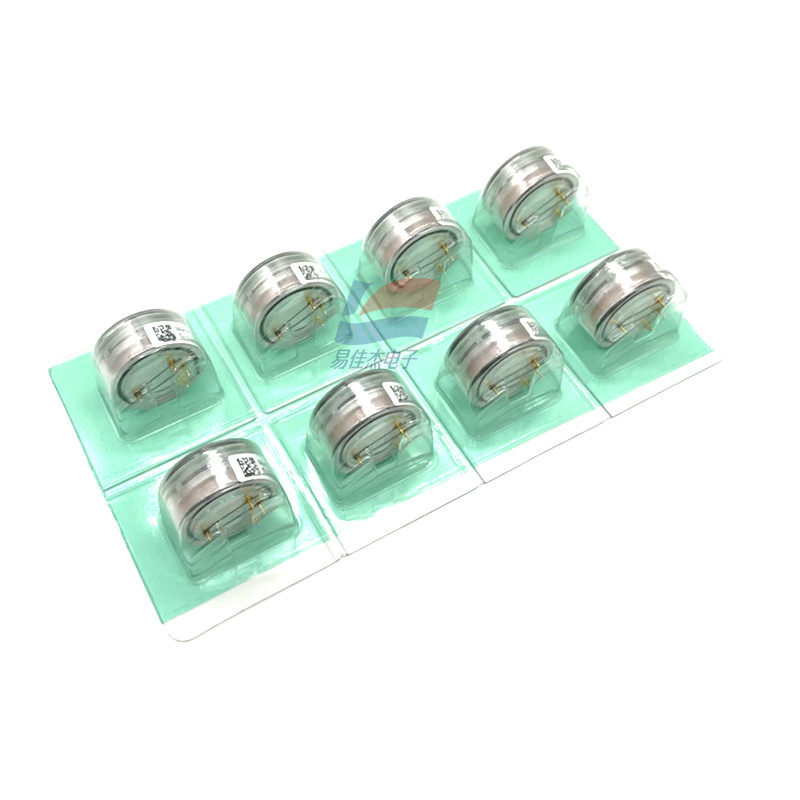

NH3/CR-50 Ammonia Detection Sensor Highly Sensitive NH3 Measurement 3 Electrode Electrochemical

Brand Name : MEMBRAPOR

Model Number : NH3/CR-50

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/Month

Delivery Time : 3-5Workingdays

Packaging Details : Standard Box

Place of Origin : Switzerland

Price : Negotiable

Operation Principle : 3-Electrode Electrochemical

Nominal Range : 0 - 50 ppm

Maximum Overload : 100 ppm

Output Signal : 155 ± 30 nA/ppm

Resolution (Electronics dependent) : < 0.3 ppm

T90 Response Time : < 45 s

Typical Baseline Range (pure air, 20°C) - : -2.5 ppm to 2.5 ppm

Repeatability : < 3% of signal

Contact Now

NH3/CR-50 Ammonia Detection Sensor Highly Sensitive NH3 Measurement 3 Electrode Electrochemical

Applications

•Leak Detection

• Discontinuous Measurement

• Safety and Environmental Control

Specification

Rec. Load Resistor 10 - 33 Ω
Bias (V_Sens-V_Ref) not allowed
Conformity to RoHS directive RoHS Compliance
Relative Humidity Range 15 % to 90 % RH non-condensing
Temperature Range -10 °C to 50 °C
Pressure Range Atmospheric ± 10%
Pressure Coefficient N.D.
Expected Operation Life 2 years in air
Storage Life 3 months in container
Rec. Storage Temperature 5°C - 20°C
Warranty Period 12 months from date of dispatch

Temperature dependence

The output of an electrochemical sensor varies with temperature. The graphs below show the temperature-dependent variation of baseline and sensitivity, respectively. The results shown here are raw data (batch average) without any post-processing steps. The sensitivity and baseline are referenced to the signal at 20°C (reference point). Please note: It is highly recommended to acquire the temperature dependence curves with the whole instrument. The sampling system, the humidity, the electronics and the interaction between the electronics and the sensor have a significant impact on the temperature dependence of the final measurement reading.

Cross Sensitivity Data

The table below does not claim to be complete. Interfering gases should not be used for calibration. Please contact Membrapor AG for further support regarding cross sensitivities.
