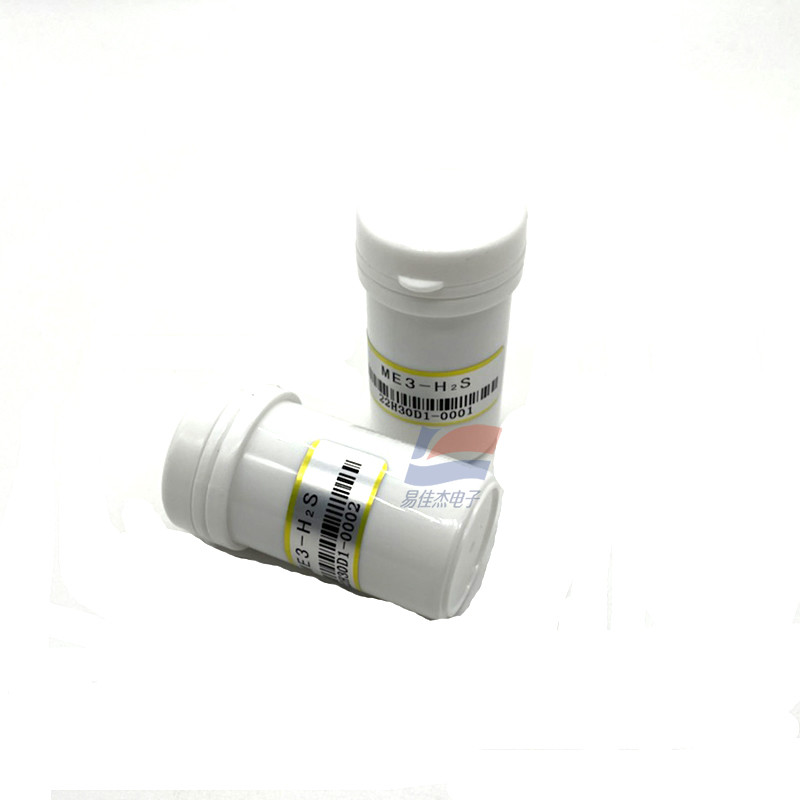

ME3-H2S Hydrogen Sulphide Sensor Constant Potential Electrolytic Type 500ppm

  • 1
  • 2

Brand Name : Winsen

Model Number : ME3-H2S

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/Month

Delivery Time : 3-5Workingdays

Packaging Details : Standard Box

Price : Negotiable

Detection : Hydrogen sulfide (H2S)

Detection range : 0~100ppm

Maximum measurement limit : 500ppm

Sensitivity : (0.8±0.15)uA/ppm

Contact Now

ME3-H2S Hydrogen Sulfide Sensor Constant Potential Electrolytic Type

ME3-H2S sensor is a constant potential electrolytic H2S sensor. H2S and O2 undergo corresponding redox reactions at the working electrode and counter electrode and release charges to form a current. The current is proportional to the H2S concentration. The H2S concentration can be determined by testing the current.

Main application
It is widely suitable for the detection of hydrogen sulfide in industry, mine and environmental protection.

Datasheet:

Resolution 0.1ppm
Response time (T90) <30S
Bias 0mV
Load resistance (recommended) 10Ω
Repeatability ＜2﹪Output value
Zero drift (-20℃～40℃) ≤0.2ppm
Temperature range ﹣20℃～50℃
Humidity range 15﹪~ 90﹪RH
Pressure range Standard atmospheric pressure ±10%
Service life 2 years (in air)

ME3-H2S Hydrogen Sulphide Sensor Constant Potential Electrolytic Type 500ppm
