MF4719-N6F-500-AB-A Air Flow Sensor Environmental Monitoring And Gas Chromatographs

  • 1
  • 2

Model Number : MF4719-N6F-500-AB-A

Place of Origin : USA

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Accuracy : ±(1.5% of Reading + 0.2% of Full Scale)

Repeatability : ±0.25% FS

Response Time : 10 ms (Default, adjustable up to 1000 ms via software)

Pressure Rating : 0.5 MPa (72.5 psi) Maximum Operating Pressure

Contact Now


MF4719-N6F-500-AB-A Air Flow Sensor



Technical Features:

  1. Sensing Technology:
    • MEMS Thermal-D® Technology: Direct mass flow measurement without temperature/pressure compensation, ensuring high accuracy in low-flow applications 3.
  2. Design Advantages:
    • Nano-Coated Sensor Surface: Resistant to oil, water, and fouling, enhancing long-term reliability 3.
    • Wide Dynamic Range: 100:1 turndown ratio for precise measurement across varying flow rates 3.
  3. Flexible Configuration:
    • User-Configurable Parameters: Flow units (slpm/sccm), response time, and output scaling via front-panel buttons or digital interface 3.
    • Multi-Gas Support: Factory-calibrated for air; supports custom gas calibration (e.g., N₂, O₂) 3.

Applications:

  • Industrial: Process control, gas mixing, and semiconductor manufacturing.
  • Medical: High-flow anesthesia machines and oxygen delivery systems.
  • Analytical Instruments: Environmental monitoring and gas chromatographs.


Mechanical Dimensions:

Dimension Value (Approx.)
Body Length 110 mm (Extended for higher flow capacity)
Body Diameter 45 mm
Weight 120 g (with 1/4" BSPT connector)
Mounting Orientation Any (Recommended: Horizontal for optimal stability)

Model Breakdown:

  • MF4719: Series code (High-flow variant of MF4700 series).
  • N6F: Connection type (1/4" BSPT Threaded Port with Quick-Connect Fitting).
  • 500: Full-scale flow rate (500 slpm).
  • AB-A: Output type (Analog + RS485) and calibration gas (Air) 13.

Ordering Information:

  • Optional Configurations:
    • Gas Type: Specify via suffix (e.g., "B" for N₂O, "C" for CO₂) 3.
    • Connector: Choose between threaded (N6F) or alternative quick-connect options.
    • Output Protocol: RS485, RS232, or analog-only (e.g., "AB" = analog + RS485) 3.


Parameter Details
Flow Range 0–500 slpm (Full-scale flow indicated by "500" in model)
Accuracy ±(1.5% of Reading + 0.2% of Full Scale)
Repeatability ±0.25% FS
Response Time 10 ms (Default, adjustable up to 1000 ms via software)
Pressure Rating 0.5 MPa (72.5 psi) Maximum Operating Pressure
Pressure Loss ≤150 Pa at full flow (Estimated for higher flow range)
Operating Temperature -10°C to +55°C (-14°F to +131°F)
Storage Temperature -20°C to +65°C (-4°F to +149°F)
Output Signal - Analog: 0.5–4.5V DC (Linear)
- Digital: RS485/RS232 (Modbus RTU)
Power Supply 8–24VDC (Typical: 24VDC, ≤50mA)


MF4719-N6F-500-AB-A Air Flow Sensor Environmental Monitoring And Gas Chromatographs



Product Tags:

MF4719-N6F-500-AB-A Gas Flow Sensor



Environmental Monitoring Air Flow Sensor



Gas Chromatographs Air Flow Sensor

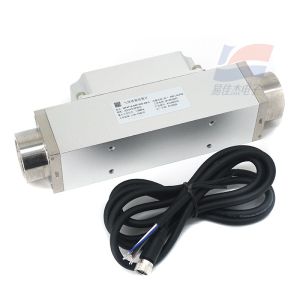

MF4719-N6F-500-AB-A Air Flow Sensor Environmental Monitoring And Gas Chromatographs Manufactures
