YJJ 7ETO-100 055-0300-000 Electrochemical Gas Sensor Is Used To Measure Concentration Of Ethylene Oxide Gas

Product Description:

7ETO-100 055-0300-000 Electrochemical Gas Sensor Is Used To Measure Concentration Of Ethylene Oxide Gas

Features:

Product Description

This product is used to measure the concentration of ethylene oxide gas and can replace the standard seven series ethylene oxide electrochemical sensor with pins.

Performance parameters

Range: 0-100 ppm

Maximum load: 500 ppm

Sensitivity (at 20℃) : 0.250 ± 0.125 μA/ppm

The response time (T90) is ≤ 120 seconds

Baseline (20℃) : -0.2 to 2.5 μA

Baseline drift (-20℃ to 50℃) < 10 ppm

Resolution: 0.5 ppm

Linearity Linear

Bias voltage +300 mV

Working environment

Temperature range: -20℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current at 500ppm of ethylene oxide is less than 0.2 mA

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance

Specifications:

7ETO-100 Electrochemical Gas Sensor

Ethylene Oxide Gas Sensor

Electrochemical Ethylene Oxide Gas Sensor

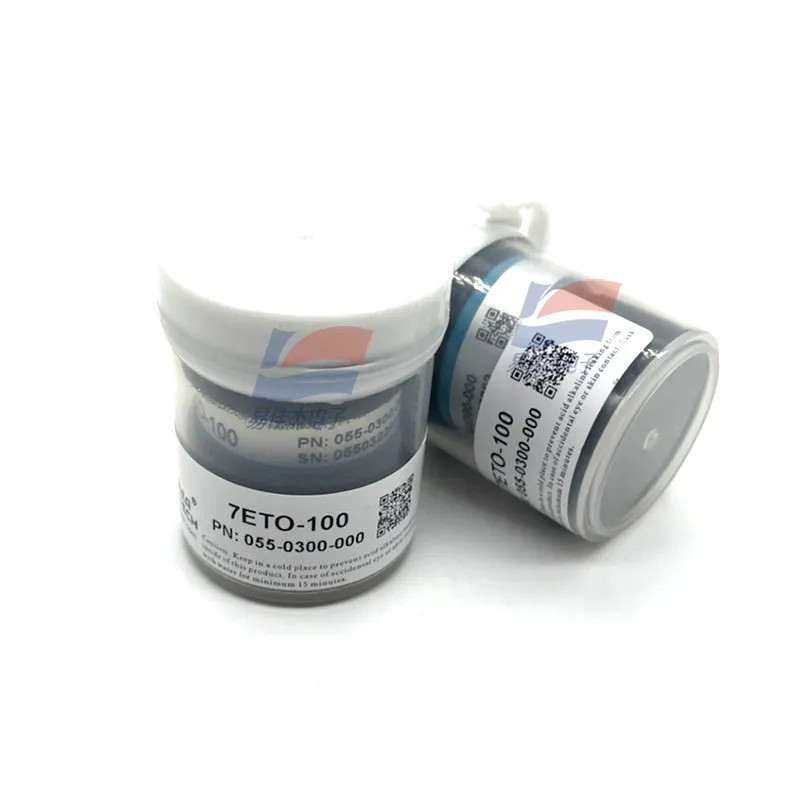

YJJ 7ETO-100 055-0300-000 Electrochemical Gas Sensor Is Used To Measure Concentration Of Ethylene Oxide Gas Images
