Brand Name : YJJ
Model Number : 7E4-O3-5 068-0900-200
Place of Origin : CHINA
MOQ : 1
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 500
Delivery Time : 5 to 8 working days
Packaging Details : Canned
Range : 0-5 ppm
Maximum load : 20 ppm
Sensitivity (20℃) : -2.00 ± 0.95 μA/ppm
Response time (T90) : ≤ 45 seconds
Baseline (20℃) : < ±0.2 μA
Resolution : 0.02 ppm
Product Description:
7E4-O3-5 068-0900-200 Electrochemical Ozone Sensor Is Used In O3 Detectors
Features:
Product Description
This product is used to measure the concentration of ozone gas and can replace the standard seven-series ozone electrochemical sensor with pins.
Performance parameters
Range: 0-5ppm
Maximum load: 20 ppm
Sensitivity (20℃) : -2.00 ± 0.95 μA/ppm
The response time (T90) is ≤ 45 seconds
Baseline (20℃) < ±0.2 μA
Baseline drift (-40℃ to 50℃) < 0.05 ppm
Resolution: 0.02 ppm
Linearity Linear
Bias voltage: 0 mV
Working environment
Temperature range: -40℃ to 50℃
The pressure range is 1 ± 0.1 standard atmosphere
Humidity range: 15% to 90%RH (no condensation)
Lifespan
Long-term stability < 2% signal value per month
Storage temperature: 10℃ to 30℃
Service life: 2 years (in the air)
Storage time: 6 months (in dedicated packaging boxes)
The warranty period is 12 months
Intrinsically safe data
The maximum current at 10ppm ozone is less than 0.2 mA
The maximum open-circuit voltage is 1.3V
The maximum short-circuit current is less than 1.0 A
Physical properties
Shell material: ABS
Weight: 8 grams
RoHS compliance
Specifications:
Storage temperature | 10℃ to 30℃ |
Service life | 2 years (in the air) |
Storage time | 6 months (in dedicated packaging boxes) |
maximum open-circuit voltage | 1.3V |
![]() |

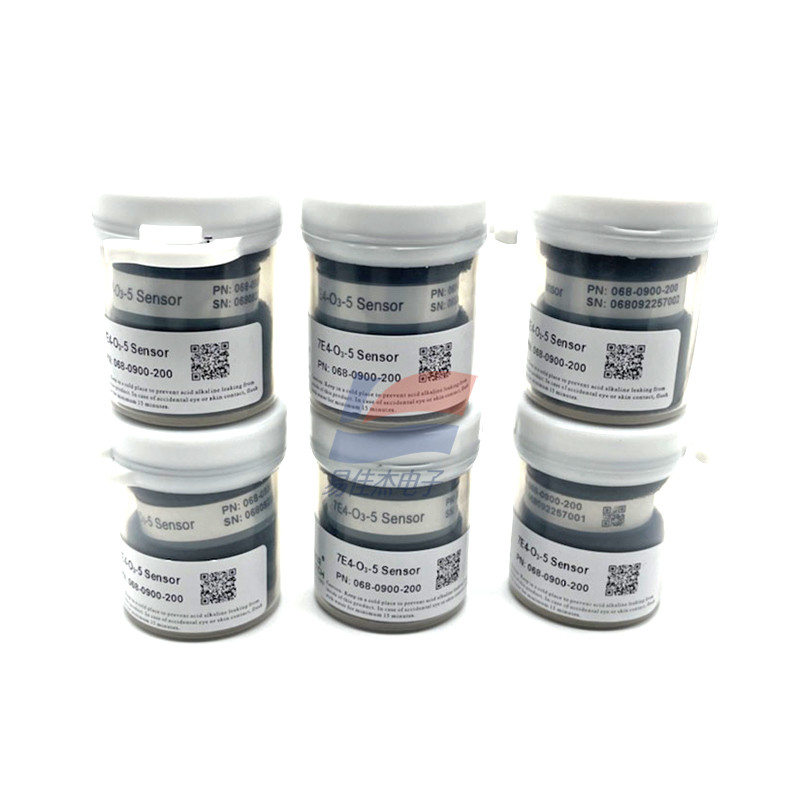

YJJ 7E4-O3-5 068-0900-200 Electrochemical Ozone Sensor Is Used In O3 Detectors Images |
