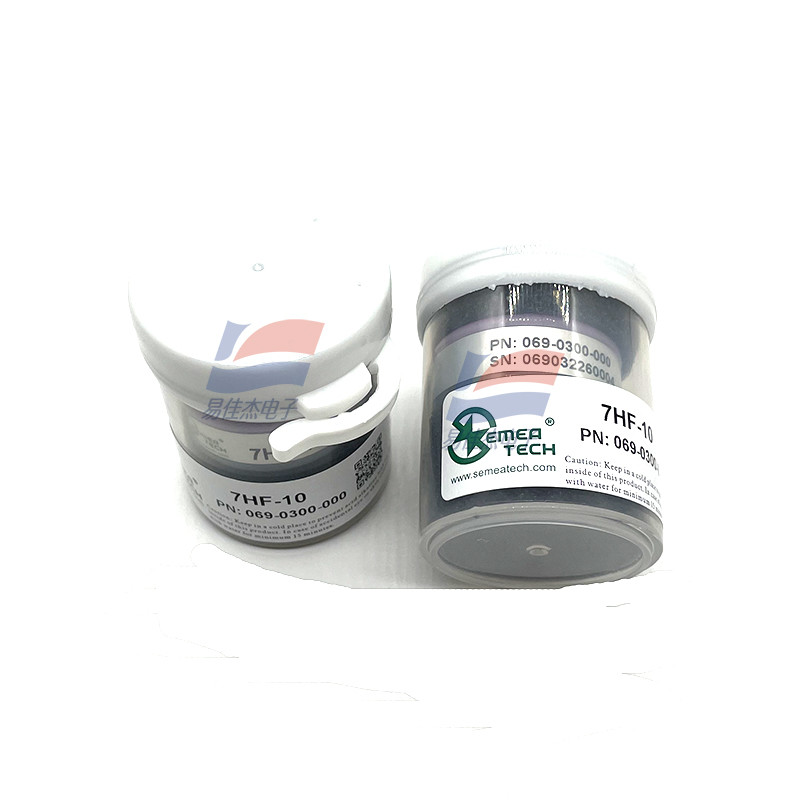

YJJ 7HF-10 069-0300-000 Electrochemical Hydrogen Chloride Sensor Is Used To Detect Concentration Of HF Gas

  • 1
  • 2

Brand Name : YJJ

Model Number : 7HF-10 069-0300-000

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 5 to 8 working days

Packaging Details : Canned

Range : 0 to 10 ppm

Maximum load : 50 ppm

Sensitivity (20℃) : -0.4 ± 0.1 μA/ppm

Response time (T90) : ≤ 120 seconds

Baseline (20℃) : < ±0.2 μA

Resolution : 0.2 ppm

Contact Now

Product Description:

7HF-10 069-0300-000 Electrochemical Hydrogen Chloride Sensor Is Used To Detect Concentration Of HF Gas

Features:

Product Description

This product is used to measure the concentration of hydrogen fluoride gas and can replace the standard seven series hydrogen fluoride electrochemical sensor with pins.

Performance parameters

The range is 0 to 10 ppm

Maximum load: 50 ppm

Sensitivity (20℃) : -0.4 ± 0.1 μA/ppm

The response time (T90) is ≤ 120 seconds

Baseline (20℃) < ±0.2 μA

Baseline drift (-20℃ to 50℃) < 3 ppm

Resolution: 0.2 ppm

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -20℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 0.2 mA at 50ppm of hydrogen fluoride

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance

Specifications:

Storage temperature 10℃ to 30℃
Service life 2 years (in the air)
Storage time 6 months (in dedicated packaging boxes)
maximum open-circuit voltage 1.3V

YJJ 7HF-10 069-0300-000 Electrochemical Hydrogen Chloride Sensor Is Used To Detect Concentration Of HF Gas
