Product Description:
XGZP6897D Pressure Sensor Module -100kPa... 0-1kPa... 200kPa Is Used For Consumer Electronics
Features:
· Measurement range -100kPa... 0-1kPa... 200kPa
· Differential pressure and gauge pressure type
· Power supply voltage :2.5V to 5.5V
· Current consumption :5uA(for one measurement)
· Dormant state current :<100nA (25°C)
· Operating temperature range :-30℃ to 85℃
· Temperature accuracy: ±0.5℃@25℃
It is suitable for non-corrosive gases
·I2C signal output, wide temperature compensation
"Application field"
Medical fields such as ventilators, CPAP, spirometers, gas flow detection, and sleep apnea treatment
Air flow detection, heating, ventilation and air conditioning, pneumatic equipment, flow meters, liquid level detection, pressure switches and other industrial fields
Fields such as biological science, small household appliances, consumer electronics, sports and fitness equipment, fire-fighting equipment, and the Internet of Things
"Overview"

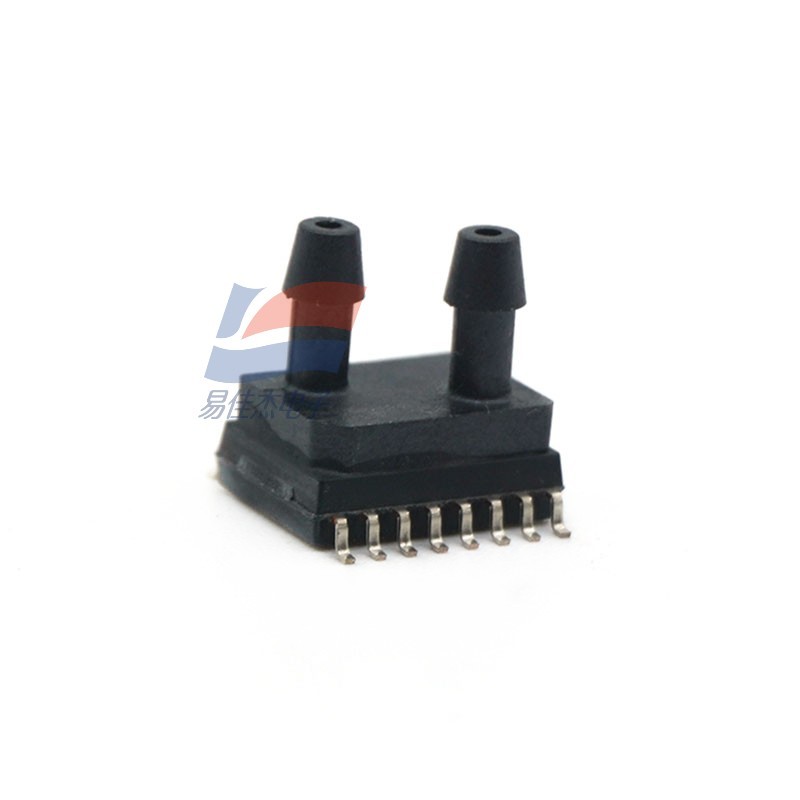

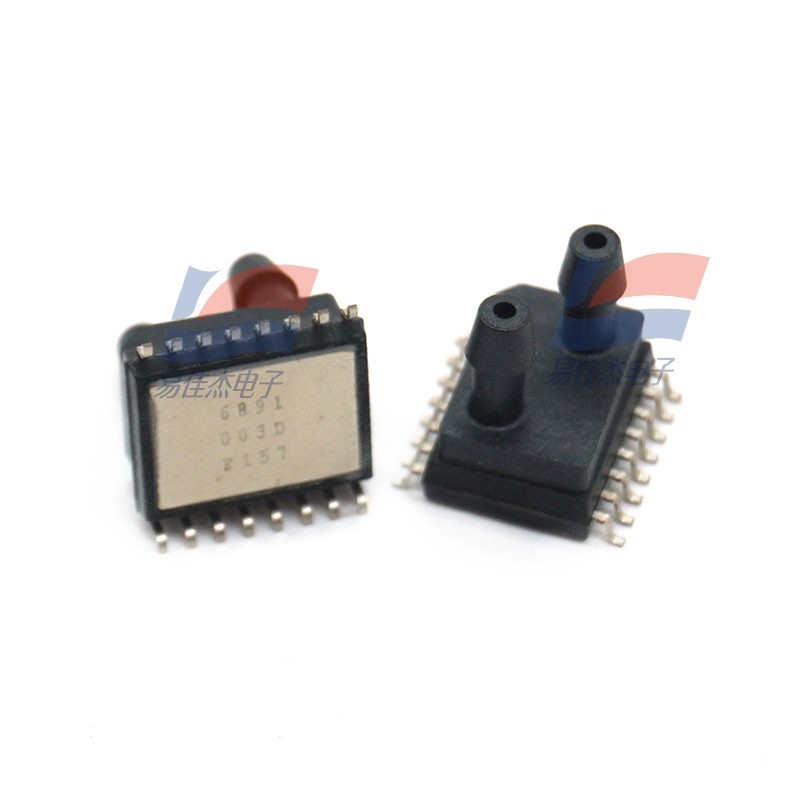

The XGZP6897D pressure module is a pressure sensor suitable for differential pressure measurement, and its core component is a MEMS technology processed
The silicon piezoresistive pressure-sensitive chip, the front and back sides of this pressure-sensitive chip sense different pressures through the pressure guide nozzles, thereby forming a pressure difference and generating
A voltage signal proportional to the pressure difference. The built-in circuit chip digitally compensates for the sensor's offset, sensitivity, temperature drift and nonlinearity to provide
Taking the electrical voltage as the reference, a digital voltage signal that has been calibrated and temperature-compensated is generated.
The XGZP6897D pressure module is compact in size and easy to install. It can be calibrated to output signals according to user requirements and is widely used in medical care, industrial inspection,
Fields such as sports and fitness equipment
Specifications:
| Power supply voltage | 2.5 to 5.5 volts |
| Operating temperature | -40 to 150 ℃ |
| PSRR | 60dB |
| Output current load | 5mA |
