Product Description:

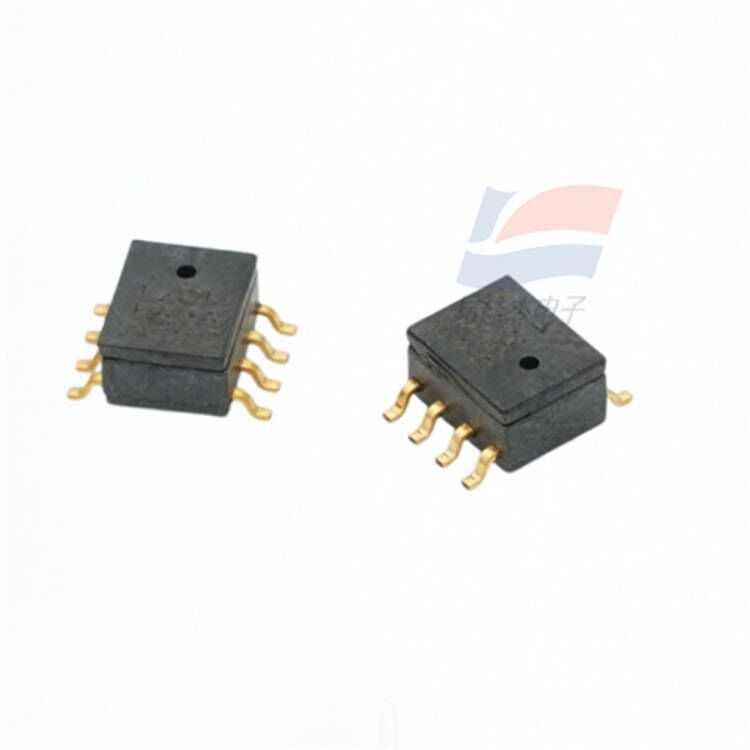

XGZP193-200kPa Gauge Pressure Sensor Has Been Calibrated With A Temperature-Compensated lateral Air Intake Nozzle
Features:
Measurement range: 0kPa to 100kPa... 700kPa
MEMS technology
Absolute pressure form
SOP packaging form, glue filling treatment
It is suitable for non-corrosive and non-conductive gases or liquids
Operating temperature range :-30℃ to +100℃
Small size
Electrical performance
Power supply :≤15VDC or ≤3.0mA DC
Input impedance :4kQ to 6kQ
Output impedance :4kQ to 6kQ
Insulation resistance :100 m · 100VDC
Allowable overload :1.5 times full scale
Burst pressure :≥2 times full scale
The XGZP193 pressure sensor is applicable to fields such as biomedicine, industrial control, and the Internet of Things. Its core component is a MEMS device
Silicon piezoresistive pressure-sensitive chips processed by technology. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane.
Four varistors form the Wheatstone bridge structure. When pressure acts on the elastic membrane, the bridge will generate a line that is in line with the applied pressure
Voltage output signal with a proportional relationship. The built-in circuit has calibrated the parameters of the sensor such as zero-point output, full-scale output and temperature drift
And compensation are provided to generate a high-precision standard voltage output signal with the supply voltage as the reference.
The XGZP193 pressure sensor is packaged in a standard DIP plug-in form, which is convenient for users to install. The design of the air intake nozzle with a hook can
Prevent the pressurizing device from falling off due to excessive pressure.
The measurement medium of the XGZP193 pressure sensor is limited to non-corrosive gases such as air. For pressures other than non-corrosive gases
For media, please feel free to inquire.
"Structural performance"
Pressure-sensitive chip: Silicon material
Lead wire: Gold wire
Shell material: PPS material
Allowable overload: 3 times full scale (pressure range ≤50kPa)
2 times full scale (50kPa< pressure range ≤200 kpa)
Xgzp193_specification Sheet _Chinese _V1.3
One fifth
Perfection is revealed under pressure
Xgzp192_specification Sheet _Chinese _V1.3 2/5
Measuring medium: Air
Medium temperature: (25±1) ℃
Ambient temperature: (25±1) ℃
Vibration: 0.1g(1m/s ²)Max
Humidity: (50%±10%) RH
Power supply: (10±0.005) VDC
It is only used as the benchmark test condition for the following basic parameters
Specifications:
| Power supply voltage | 2.5 to 5.5 volts |
| Operating temperature | -40 to 150 ℃ |
| PSRR | 60dB |
| Output current load | 5mA |
