YJJ XGZP6847A Pressure Sensor Module -100kPa To 2.5kPa... 1500kPa Is Used In Medical Fields Such As Monitors

Product Description:

XGZP6847A Pressure Sensor Module -100kPa To 2.5kPa... 1500kPa Is Used In Medical Fields Such As Monitors

Features:

• Measurement Range: -100 kPa to 2.5 kPa … 1500 kPa
• Pressure Type: Gauge pressure (positive or negative pressure)
• Media Compatibility: Suitable for non-corrosive gases
• Power Supply Options: 5V, 3.3V, or 3.0V DC
• Output Options: Standard voltage output or proportional voltage output

Application Fields

• Medical: Electronic blood pressure monitors, ventilators, oxygen concentrators, patient monitors, etc.
• Automotive Electronics: Tire pressure gauges, power steering systems, brake boosters, MAP (Manifold Absolute Pressure) sensors, etc.
• Fitness Equipment: Massagers, massage chairs, air mattresses, etc.
• Other Applications: Water heaters, ozone water machines, beer dispensers, coffee machines, air pumps, vacuum pumps, pressure gauges, electric breast pumps, vacuum cleaners, etc.

Overview

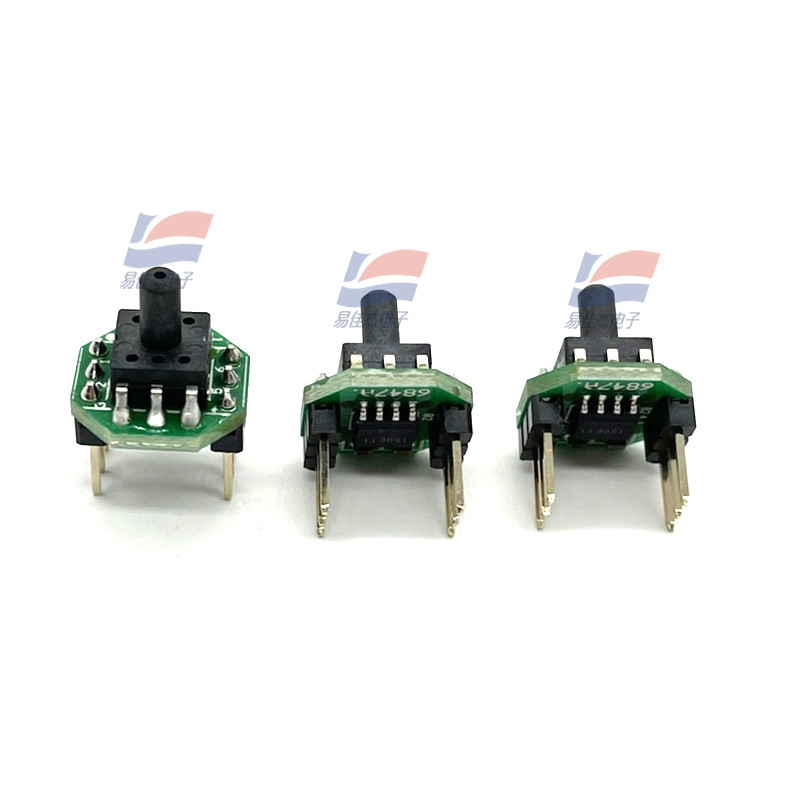

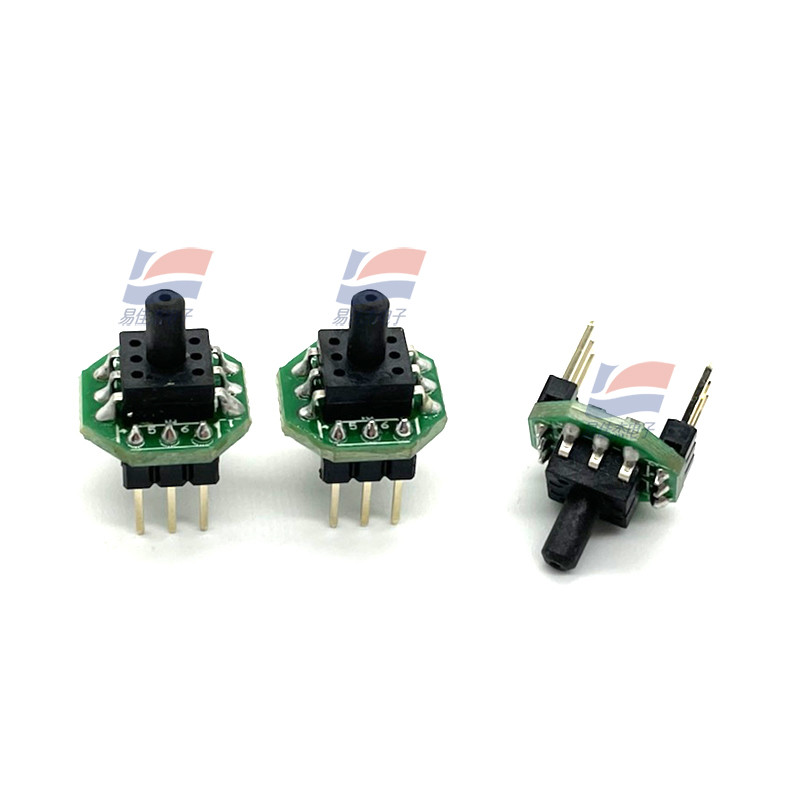

The XGZP6847A Pressure Module adopts a DIP-like package, with an SOP (Small Outline Package)-mounted pressure sensor and signal processing circuit chip installed on both sides of the PCB (Printed Circuit Board). It digitally compensates for sensor offset, sensitivity, temperature drift, and nonlinearity, generating a calibrated and temperature-compensated standard voltage signal referenced to the supply voltage.

Featuring a compact size and easy installation, the module can be calibrated for output signals according to user requirements. It is widely used in medical electronics, automotive electronics, fitness equipment, and other industries.

Specifications:

XGZP6847A Pressure Sensor Module

Medical Fields Pressure Sensor Module
