Product Description:

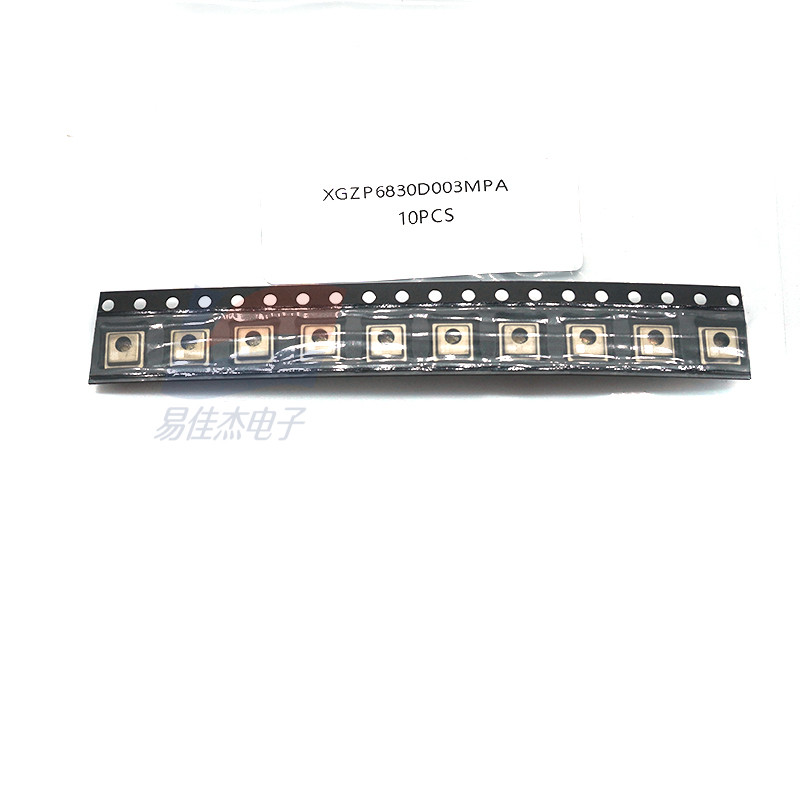

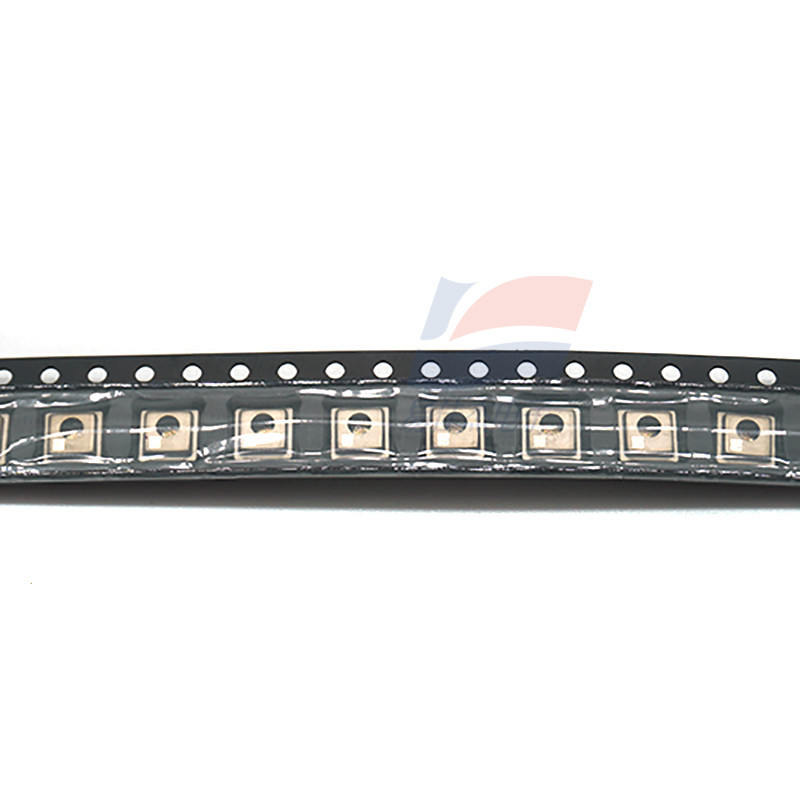

XGZP6830D Pressure Sensor Module: 0kPa To 100kPa... 3000kPa Is Used In The Automotive Field
Features:
Measurement range: 0kPa to 100kPa... 3000kPa
Absolute pressure type
Power supply voltage: 1.8V - 3.6V
IIC communication, low power consumption
Ceramic encapsulation structure, moisture-proof and oil-proof
The pressure range can be customized
"Application field"
Automobile and motorcycle intake systems, as well as automotive electronics fields such as tire pressure gauges and on-board air pumps
Air pumps, vacuum pumps, pressure switches, pneumatic control systems and industrial equipment, etc
Fire extinguishers, weather stations, navigation and other fields
Other absolute pressure measurement systems
"Overview"
The XGZP6830D pressure sensor uses ceramic plates as the base material and has an encapsulated pressure sensor inside
Together with the signal conditioning chip, digital compensation is carried out for the sensor's offset, sensitivity, temperature drift and nonlinearity. Internal signal area
The controller converts the outputs of the pressure and temperature sensor elements into 24-bit and 16-bit data respectively. Each pressure sensor has
Calibrate separately and include calibration coefficients. In the application, coefficients are used to convert the measurement results into real pressure and temperature
The values, sensor measurement and calibration coefficients can be obtained through the serial I2C interface.
The internal chip and gold wire of the XGZP6830D pressure sensor are covered with fluorine-containing silicone rubber, which is waterproof, moisture-proof and oil-resistant.
The XGZP6830D pressure sensor features a fast response, high precision, low power consumption, and excellent linearity and stability
Sex. Small in size, easy to install and convenient for system integration, it is widely used in consumer electronics, automotive electronics, fire protection and home appliances
Electricity and other civil meteorological fields, etc.
"Performance indicators"
Power supply: 1.8V - 3.6V DC. Test reference: Temperature @25℃
Specifications:
| Item | Description |
| Output Signal (5V Supply) | Voltage range when powered by 5V DC |
| Accuracy | Measurement accuracy (full scale) |
| Zero Point Temperature Drift | Drift of zero point due to temperature changes |
