Product Description:
2SS52M All-pole Hall Magnetoresistive Sensor Can Achieve Long-Distance Detection
Features:
2SS52M series digital magnetoresistive sensor is a full-pole solid-state sensor. Its built-in magnetoresistive bridge is integrated on a silicon device and wrapped in a plastic package. This integrated circuit also includes a bandgap regulator and digital output, which will respond to extremely low magnetic fields.
These sensor ics can be operated using parallel north and south magnetic poles. There is no need to identify the polarity, which simplifies the installation in single-pole applications and doubles the resolution of rotating magnet applications.
These compact and highly sensitive all-pole devices have become popular building blocks for flow measurement, motor RPM and cylinder position sensing.
Typical applications:
Weaker magnetic field/larger detection range
Applications independent of polarity
Presence/disappearance detection
Flip cover sensor of notebook computer
Position sensor of material handling equipment
Cylinder position sensing in pneumatic cylinders
They have five packaging styles:

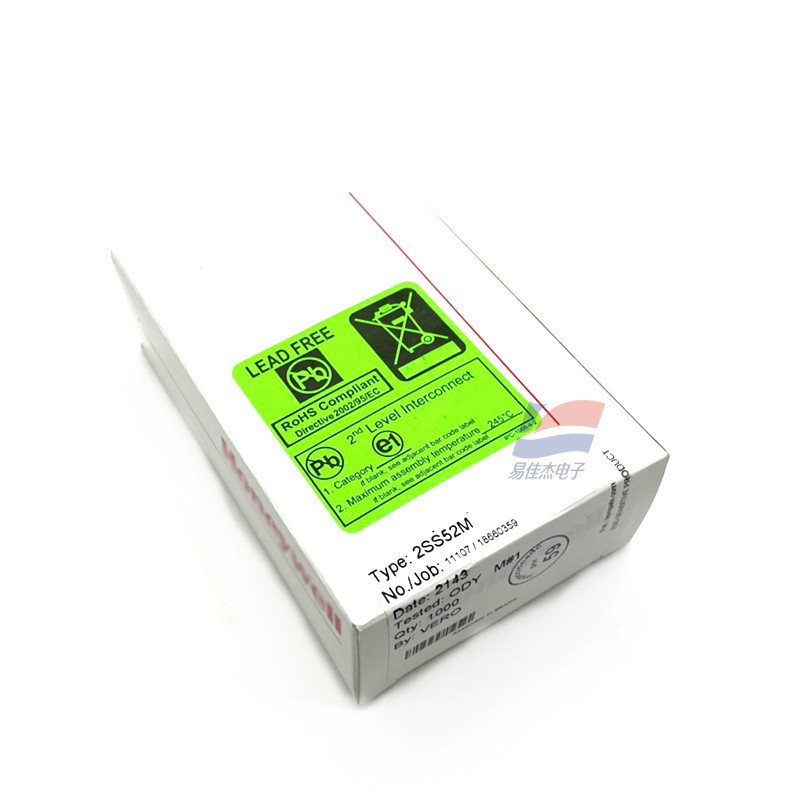

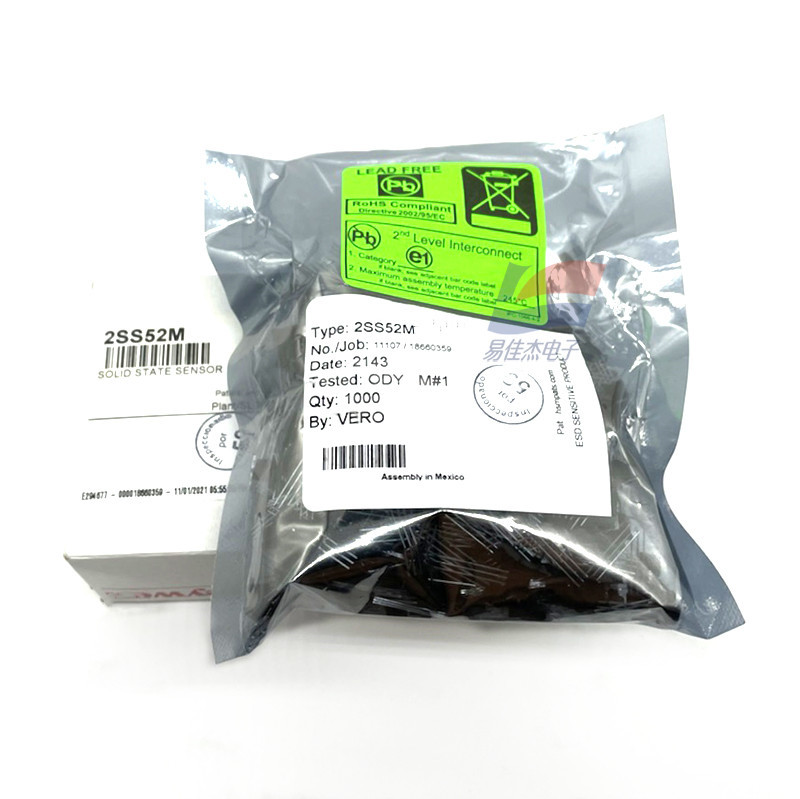

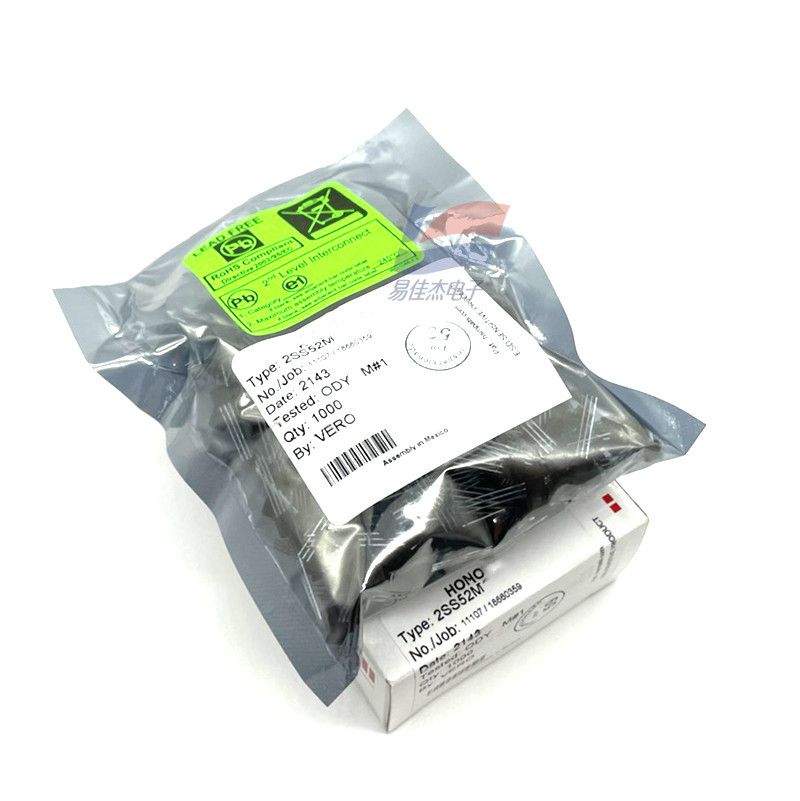

2SS52M: U-pack, 3-pin, straight-lead online sensor IC, bulk supply (1000 pieces per bag)
The SS552MT:SOT-89B surface mount sensor IC is installed on magnetic tapes and reals, enabling a compact design and automatic component placement (1000 units per magnetic tape and reel).
2SS52M-S: U-pack, 3-pin series, surface mount sensor IC, bulk supply (1000 pieces per bag)
2SS52M-T2: U-pack, 3-pin, in-line sensor IC, formed leads are provided in the form of ammunition packaging tape (5,000 per box)
2SS52M-T3: U-pack, 3-pin, in-line sensor IC, provided with ammunition box tape (5,000 pieces per box)
Specifications:
| Sensor type | Magnetic sensor |
| Sensing range | ±50mT |
| Work Point (BOP | 2SS52M-T2 |
| Power supply voltage | 30V |
