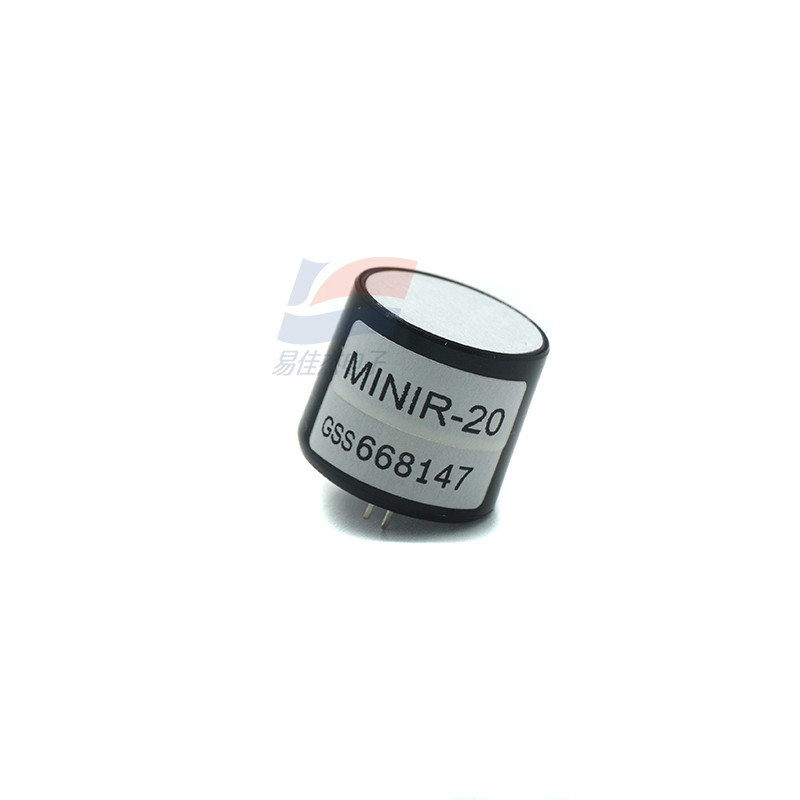

YJJ MINIR-20/ExplorIR-M Low-Power And Small-Sized Micro Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor)

Brand Name : GSS

Model Number : MINIR-20

Place of Origin : Britain

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 5 to 8 working days

Packaging Details : Bagged

Working environment : 0℃ to 50℃

Storage temperature : -30℃ to +70℃

Measurement range : 0-5%, 0-20%, 0-60%, 0-100%

Accuracy : ±70ppm or a maximum value of +/-5%

Nonlinearity is less than : 1%FS

Working pressure range : 950mbar to 1050mbar

Contact Now

Product Description:

MINIR-20/ExplorIR-M Low-Power And Small-Sized Micro Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor)

Features:

I. Product Description of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M:

The infrared carbon dioxide sensor /CO2 sensor MINIR is a CO2 sensor with low power consumption (3.5mW) and high performance, and is applied in battery-powered products and portable devices

An ideal choice for preparation; Based on IR LED technology and innovative optical path design, the carbon dioxide sensor MINIR becomes a low-power and small-sized NDIR sensor. MINIR is

The third-generation product of GSS Company is the innovator of IR LEDCO2 sensing technology.

Ii. Product Features of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M:

Ultra-low power: 3.5mW

The measurement range is from 0 to 100%

The supply voltage is 3.3v

The peak current is only 33mA

20mm diameter probe type package

Iii. Application of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M

Storage of vegetables and fruits, chemical industry, bacterial incubators, industry and medical care

Iv. Product Parameters of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M:

The preheating time is less than 10 seconds. The CO2 concentration value is output after 1.2 seconds

Working environment: 0℃ to 50℃ (standard), 0 to 95%RH, no condensation

Storage temperature: -30℃ to +70℃

Sensing method

Non-diffusion infrared light absorption technology

Gold-plated optical path patent technology

Patent technology of all-solid-state light source and detector

Sampling method: Gas diffusion

Measurement range: 0-5%, 0-20%, 0-60%, 0-100%

Accuracy ±70ppm or a maximum value of +/-5%

The nonlinearity is less than 1%FS

The working pressure range is 950mbar to 1050mbar

The response time is 10 seconds to 3 minutes, with readings taken twice per second

Power input

3.25V to 5V (3.3V recommended)

The peak current is 33mA and the average current is less than 1.5mA

Power consumption: 3.5mW

Specifications:

Response time response time
Nonlinearity is less than 1%FS
Peak current 33mA
Power consumption 3.5mW

YJJ MINIR-20/ExplorIR-M Low-Power And Small-Sized Micro Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor)YJJ MINIR-20/ExplorIR-M Low-Power And Small-Sized Micro Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor)YJJ MINIR-20/ExplorIR-M Low-Power And Small-Sized Micro Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor)
