Product Description:

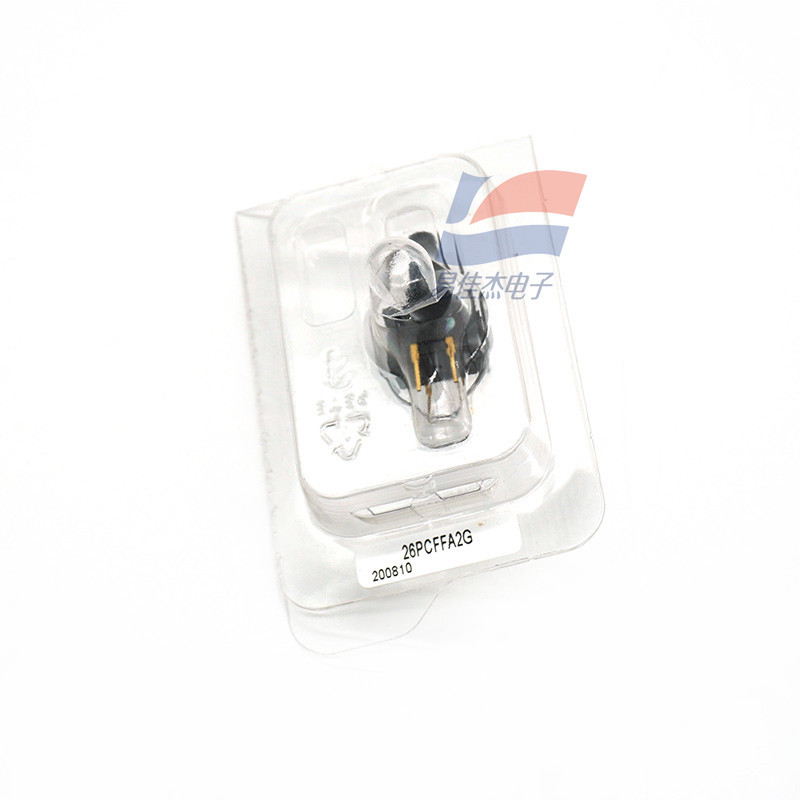

26PCFFA2G Respiratory Instrument Gauge Pressure Sensor From 0 to 100psi
Features:
26PC series compensating type. Low pressure. mV output. Differential pressure, wet/wet differential pressure, gauge pressure. DIP, SIP, SMT. Linearity and lag: 0.5% typ.
Pressure range
0.5 psi to 250 psi (SIP, DIP)
1 psi to 15 psi (SMT)
The factory-calibrated 26PC series of small pressure sensors feature a compact package size and offer reliable gauge pressure sensing performance. This sensor is equipped with verified sensing technology and employs dedicated piezoresistive micro-machined sensing elements, allowing for part interchangeability. It features high performance, reliability and accuracy. The low-power, amplitation-free and compensation-free Wheatton bridge circuit can provide a stable mV output within the sensing range of 1.0 psi to 250 psi.
Product Features
It is the most economical sensor with temperature compensation and calibration functions
A variety of pressure measurement interface configurations are available for selection - they can be easily and quickly modified according to special requirements
It can work normally even under freezing conditions
Multiple terminal connection methods for measurement sensors are available for selection
Zero position and range calibration
Temperature compensation
Interchangeability can be achieved
It can be used to measure vacuum or positive pressure
Application field
Health
The distribution of oxygen and nitrogen in hospitals
Dental operating chair
Environment
Water flow control valve
Instruments and meters
Irrigation equipment
Filtering monitoring equipment
Industrial instrument
Robot
Pressure valves
Leakage detection
Air compressor
Medical devices
Gas chromatograph
Specifications:
| Working pressure | 0 psi to 100 psi |
| Accuracy | 0.4% |
| Output type | Digital, Analog |
| Installation style | SMD/SMT |
