ZEHS04 Atmospheric Monitoring Sensor Module Working Voltage DC 9-24V Resume Time ≤ 120S

Model Number : ZEHS04

Place of Origin : CN

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Model : ZEHS04

Output : UART(3V TTL, 5V compatible), RS485

Working Voltage : DC 9~24V

Response Time : ≤ 120S

Resume Time : ≤ 120S

Resolution : ≤ 10ppb

Contact Now

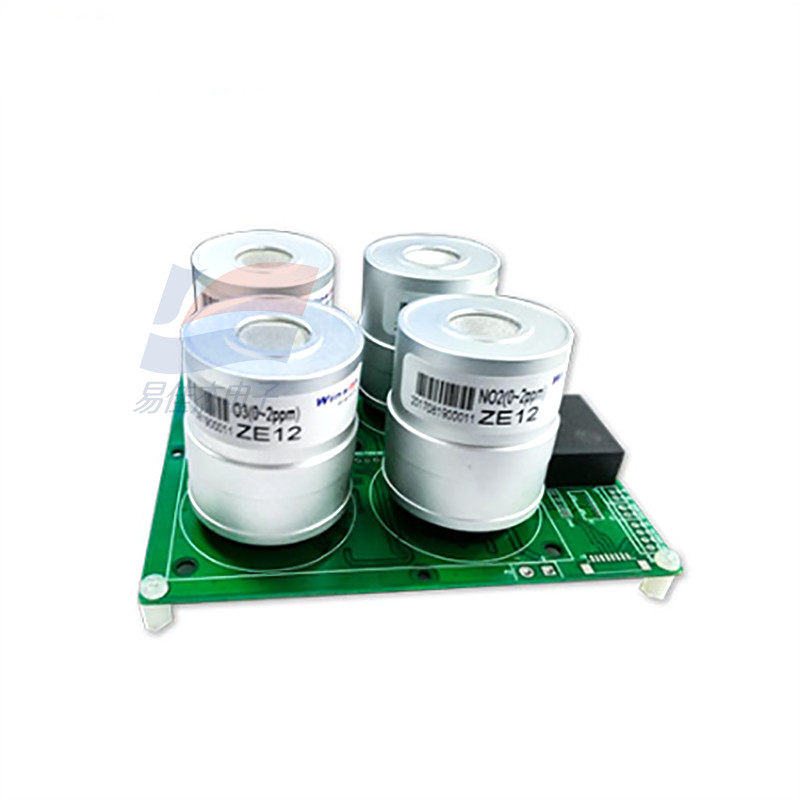

ZEHS04 Atmospheric Monitoring Sensor Module

Description:

ZEHS04 is a diffusion type multi-in-one module, mounted with atmospheric monitoring module ZE12, to detect CO, SO2, NO2, and O3. It is also compatible to connect with dust sensor module, temperature and humidity sensor module externally. With TTL or RS485 output, it is convenient to use and debug, which greatly shortens the user’s design and development cycle, and meets customers’ needs for different gas detection occasions.

Application:

  • Urban atmospheric environmental monitoring.
  • Unorganized emissions of pollution monitoring at factory sites.
  • Portable instruments, air quality monitoring equipment, and smart home equipment.

Features:

  • High sensitivity, high resolution, long lifespan.
  • UART or RS485 output.
  • High stability, good anti-interference ability, excellent linear output.

Specifications:

Model ZEHS04
Target Gas CO, SO2, NO2, O3 (PM2.5, PM10, temperature and humidity expansion compatible)
Output UART(3V TTL, 5V compatible), RS485
Working Voltage DC 9~24V
Response Time ≤ 120S
Resume Time ≤ 120S
Resolution ≤ 10ppb
Working Temperature -20～50℃
Working Humidity 15~90% RH (no condensation)
Storage Temperature -20～50℃
Life Span 2 years (based on sensor life span)
Power Consumption ≤ 1W
Size 10x12x6cm (Lx Wx H)
