ZPHS01C Multi-in-One Sensor Module Detects PM2.5 CO2 CH2O TVOC Temperature Humidity with High Sensitivity

Model Number : ZPHS01C

Place of Origin : CN

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Model : ZPHS01C

Target Gas : PM2.5, CO2, CH2O, TVOC,Temperature&Humidity

Interference gas : Alcohol/CO gas…etc.

Working voltage : 5V (DC)

Model ZPHS01C Target Gas PM2.5, CO2, CH2O, TVOC,Temperature&Humidity Interference gas Alcohol/CO gas : ＜500 mA

Interface level : 3 V(compatible with 3.3V)

Contact Now

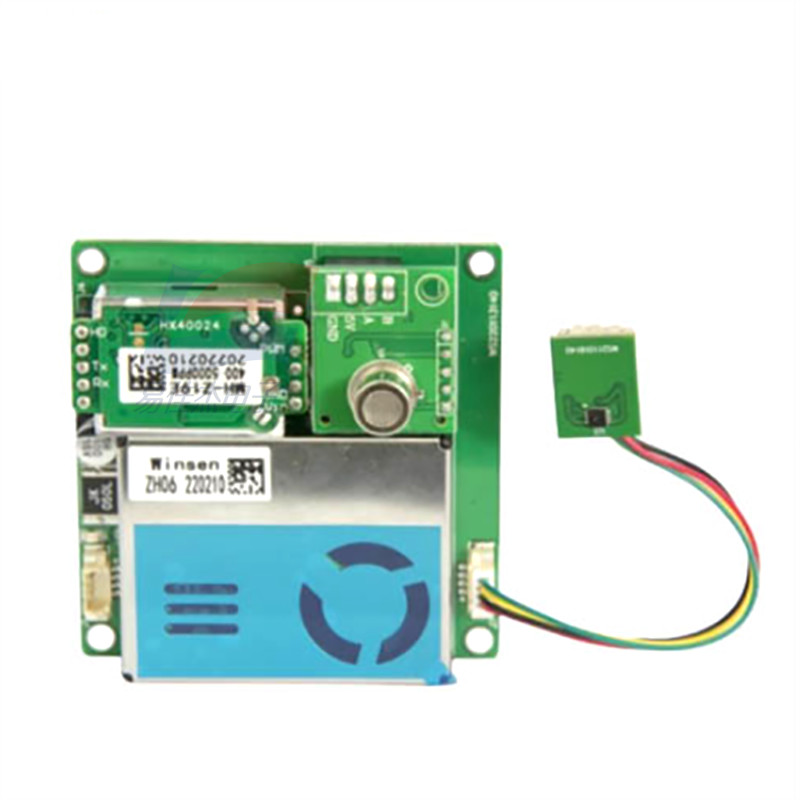

ZPHS01C Multi-in-One Sensor Module

Description:

This module integrates Electrochemical formaldehyde,
Semiconductor VOC sensor, Laser particle sensor, NDIR CO2 sensor and temperature& humidity sensor. (Users could choose CH2O version or VOC version, they are not concomitant.)
Communication Interface: TTL serial, Baud rate:9600, data bit:8, stop bit:1, parity bit: none.

Application:

  • Gas detector
  • Air conditioner
  • Air quality monitoring
  • Air purifier 
  • HVAC system
  • Smart home

Features:

see manual

Specifications:

Model ZPHS01C
Target Gas PM2.5, CO2, CH2O, TVOC,Temperature&Humidity
Interference gas Alcohol/CO gas…etc.
Working voltage 5V (DC)
Average Current ＜500 mA
Interface level 3 V(compatible with 3.3V)
Output signal UART(TTL)
Interface type MX 1.25-4P
Preheat time ≤ 3min
CO2 range 400~5000ppm
PM2.5 range 0~1000ug/m3
CH2O range 0~1.6ppm
TVOC range 4 grades
Tem. range 0～65℃
Tem. precision ±0.5℃
Hum. range 0~100% RH
Hum. precision ±3%
Working Tem. 0～50℃
Working Hum. 15~80% RH(no condensation)
Storage Tem. 0～50℃
Storage Hum. 0~60% RH
Size 62.5mm (L) x 61mm(W) x 25mm(H)
