Silicon Pin Photodiode S1223 S1223-01 Is Used For Optical Measuring Equipment And Analytical Equipment

Product Categories

ShenzhenYijiajie Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : S1223

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Illuminated surface : 3.6 × 3.6 mm

Package : Metal

Package category : TO-5

Refrigeration : Uncooled type

Reverse voltage (Max) : 30 V

Spectral response range : 320 to 1100 nm

Contact Now

Silicon PIN photodiode S1223-01 S1223

S1223-01 Suitable for precision photometry from visible to near infrared bands

Features:
- High sensitivity in the near-infrared band
- High reliability
- High speed response: fc = 20 MHz
- Low capacitance

Applications:

Optical measurement equipment

Analytical equipment, etc

S1223 is suitable for precision photometry from visible light to near infrared

peculiarity:
- High sensitivity in near infrared band
- High reliability
- High speed response: fc = 30 MHz
- Low capacitance

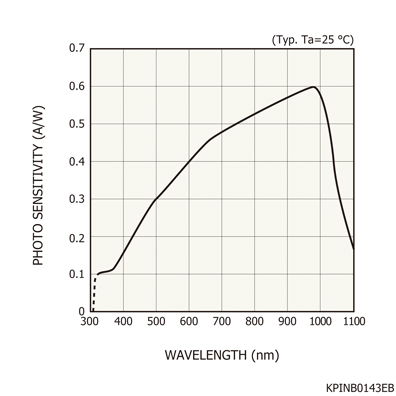

Spectral sensitivity characteristics:

Silicon Pin Photodiode S1223 S1223-01 Is Used For Optical Measuring Equipment And Analytical Equipment

Light sensitivity (typical)	0.52 A/W
Dark current (max)	10000 pA
Cut-off Frequency (typical)	20 MHz
Junction Capacitance (typical)	20 pF

Silicon Pin Photodiode S1223 S1223-01 Is Used For Optical Measuring Equipment And Analytical Equipment
