Model Number : S2386-18L

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Light-receiving side : 1.1 × 1.1 mm

encapsulation : metal

Package Category : TO-18 with lens

refrigeration : Non-cooled

Reverse voltage (max) : 30 V

Spectral response range : 320 to 1100 nm

Contact Now

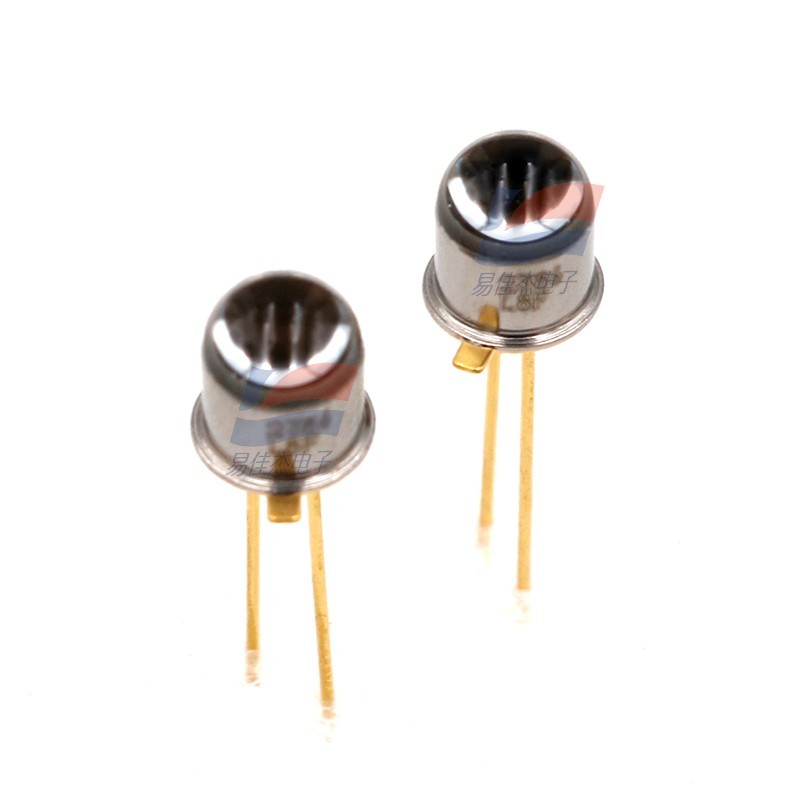

Silicon photodiodes S2386-18L

Features:
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity

Applications:

- Analytical instruments

- Optical measurement equipment

Spectral sensitivity characteristics:

Silicon Pin Photodiode S2386-18L Suitable For Visible To Near-infrared Universal Photometer

Dimensions (unit: mm)

Silicon Pin Photodiode S2386-18L Suitable For Visible To Near-infrared Universal Photometer

Light sensitivity (typical)	0.6 A/W
Dark current (max)	2 pA
Rise Time (Typical)	0.4 μs
Junction Capacitance (typical)	140 pF

Silicon Pin Photodiode S2386-18L Suitable For Visible To Near-infrared Universal Photometer
