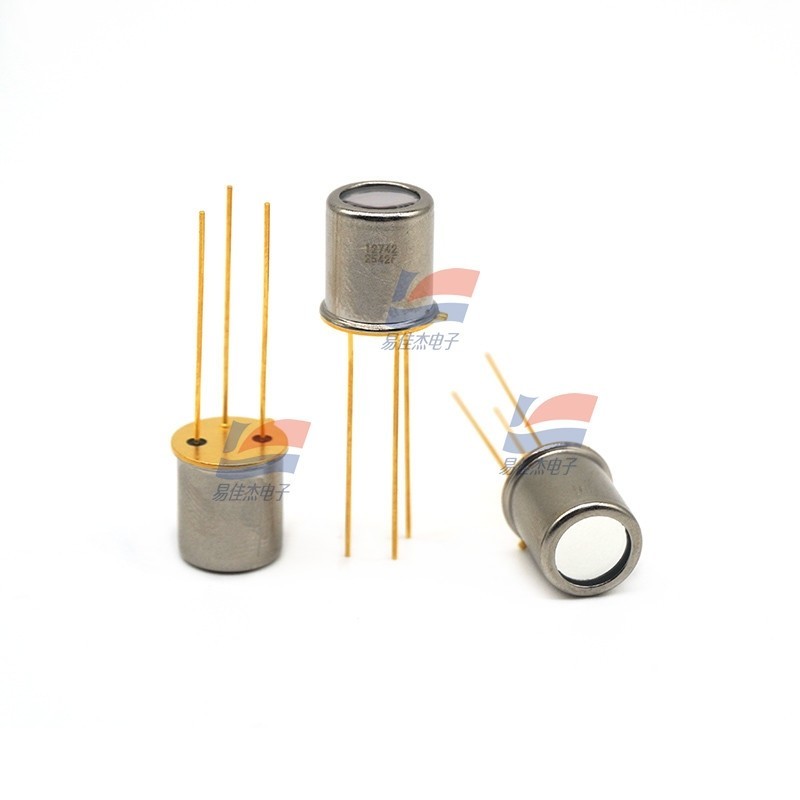

Silicon Photodiodes S12742-254 Silicon Photodiode With Interference Filter

Name: Silicon Photodiodes S12742254 Silicon Photodiode With Interference Filter
Brand: Hamamatsu
Price: 1 USD

Silicon Photodiodes S12742-254 Silicon Photodiode With Interference Filter Manufactures

Brand Name : Hamamatsu

Model Number : S12742-254

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Light-receiving side : 3.6 × 3.6 mm

encapsulation : metal

Package Category : TO-5 with filter

refrigeration : Non-cooled

Reverse voltage (max) : 5 V

Rise Time (Typical) : 1 μs

Contact Now

Silicon photodiodes S12742-254

Photodiode with interference filter for monochromatic light (254 nm) detection

The window of the S12742-254 uses an interference filter and is only sensitive to monochromatic light. The spectral sensitivity characteristic width is extremely narrow at 10 nm (FWHM), so photometric measurements can be made accurately without being affected by stray light. The maximum sensitivity wavelength is 254 nm typical. The S12742-254 can be customized to support other maximum sensitivity wavelengths, e.g., 340 nm, 560 nm.

Features
- Silicon photodiode with interference filter
- Monochromatic light (254 nm) detection

Spectral response range	252 to 256 nm
Maximum Sensitivity Wavelength (Typical)	254 nm
Light sensitivity (typical)	0.018 A/W
Dark current (max)	25 pA
Rise Time (Typical)	1 μs
Junction Capacitance (typical)	500 pF
Noise equivalent power (typical)	9.1×10-14 W/Hz1/2
Package Category	TO-5 with filter
