S6775 S6775-01 Silicon PIN Photodiode High-speed Response

  • 1
  • 2
  • 3

Model Number : S6775 S6775-01

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Light-receiving side : 5.5 × 4.8 mm

encapsulation : plastics

refrigeration : Non-cooled

Reverse voltage (max) : 20 V

Spectral response range : 320 to 1100 nm

Dark current (max) : 10000 pA

Contact Now

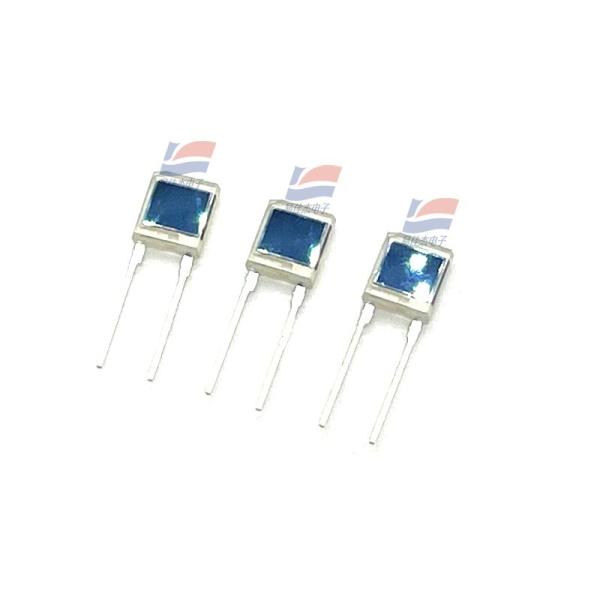

Silicon PIN photodiode S6775

Plastic SIP (Single In-Line Package)

The S6775 is a silicon PIN photodiode with a large photosensitive surface molded into a clear plastic SIP for detection in the near-infrared range. This silicon PIN photodiode features high sensitivity, high-speed response, and a large photoreceptor area.

Features:
- Visible to Near-Infrared Wavelength
Range - High Sensitivity
- High Speed Response
- Large Photosensitive Surface
- Plastic Package: 7 × 7.8 mm
- Photosensitive Surface Size: 5.5 × 4.8 mm

Light sensitivity (typical) 0.55 A/W
Dark current (max) 10000 pA
Cut-off Frequency (typical) 15 MHz
Junction Capacitance (typical) 40 pf
Noise equivalent power (typical) 1.8×10-14 W/Hz1/2
Reverse voltage (max) 20 V

S6775 S6775-01 Silicon PIN Photodiode High-speed Response

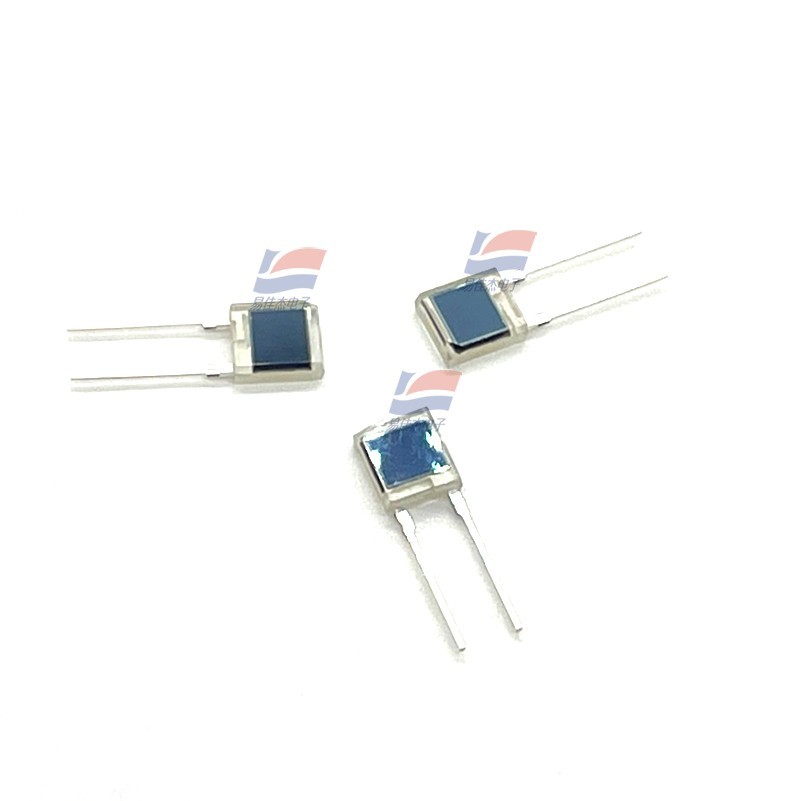

Silicon PIN photodiode S6775-01

Plastic SIP (Single In-Line Package)

The S6775-01 is a silicon PIN photodiode with a large photoreceptor surface, molded into a visible-cut plastic SIP, for detection in the near-infrared range only. This silicon PIN photodiode features high sensitivity, high-speed response, and a large photoreceptor area.

Features:
- Visible light cut-off - High sensitivity - High speed response - Large photosensitive surface
- Plastic package: 7 × 7.8 mm
- Light-receiving surface size: 5.5 × 4.8 mm

Light-receiving side 5.5 × 4.8 mm
encapsulation plastics
refrigeration Non-cooled
Reverse voltage (max) 20 V
Spectral response range 700 to 1100 nm
Light sensitivity (typical) 0.68 A/W
Dark current (max) 10000 pA
Cut-off Frequency (typical) 15 MHz
