YJJ GUVC-T10GD-L 185 Monitors Korean GenUV Photodiode Ultraviolet For Far Ultraviolet Monitoring

Product Description:

GUVC-T10GD-L 185 Monitors Korean GenUV Photodiode Ultraviolet For Far Ultraviolet Monitoring

Features:

First, UV sensor GUVC-T10GD-L Product Description:

UV sensor GUVC-T10GD-L is a product with a large sensitive area and the main detection band range is 254nm. The sensor is packaged in a

Inside the TO-46's metal casing. The area of the sensor chip is 1.536mm². The output of UV sensor is mainly related to responsiveness, sensor sensitive area and light intensity, so

Products with large sensitive areas can detect weak ultraviolet radiation. It is mainly used for close flame monitoring (in dark environments) and disinfection equipment.

Second, UV sensor (UV sensor) GUVC-T10GD-L Product features:

- Chip size 1.4mm, TO 46 package

- Aluminum gallium nitride material

- Schottky photodiode

- Photovoltaic mode operation

- Good day blindness

Third, UV sensor (UV sensor) GUVC-T10GD-L application:

- Pure UV-C monitoring

- Germicidal lamp monitoring

- Close flame detection

4. UV sensor GUVC-T10GD-L Specifications:

Parameter remarks

Operating temperature -30~85℃

Reverse voltage Max 2V

Welding temperature 260℃ within 10s

Responsivity 0.05A/ Wλ =254nm, Vr=0V

Band range 220-280nm 10% of Rp

Photocurrent 0.55uA UVCLamp, 1mw/cm²

Detection power range 0.01uw/cm²~100mw/cm²

Specifications:

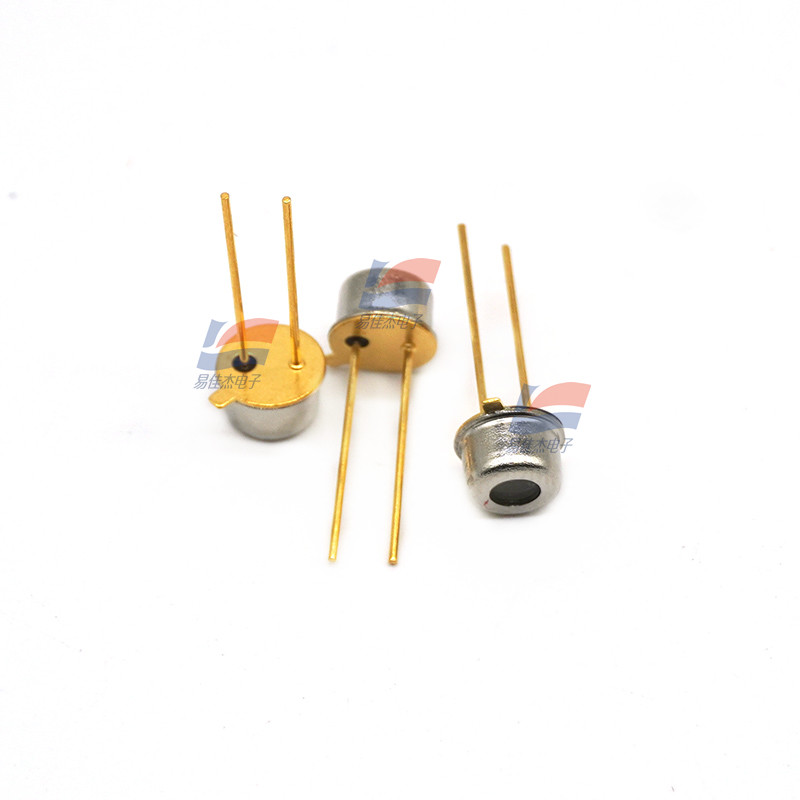

YJJ GUVC-T10GD-L 185 Monitors Korean GenUV Photodiode Ultraviolet For Far Ultraviolet Monitoring Images
