ME3-ETO Ethylene Oxide Sensor Constant Potential Electrolytic Sensor

Name: ME3ETO Ethylene Oxide Sensor Constant Potential Electrolytic Sensor
Brand: Winsen
Price: 1 USD

ME3-ETO Ethylene Oxide Sensor Constant Potential Electrolytic Sensor Manufactures

Brand Name : Winsen

Model Number : ME3-ETO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/Month

Delivery Time : 3-5Workingdays

Packaging Details : Standard Box

Detection gas : Ethylene oxide (ETO)

Range : 0~20ppm

Maximum measurement limit : 100ppm

Sensitivity : (1.8±0.3)uA/ppm

Contact Now

ME3-ETO Ethylene Oxide Sensor Constant Potential Electrolytic Sensor

ME3-ETO electrochemical gas sensor is a constant-potential electrolytic sensor. The corresponding redox reaction of ethylene oxide and oxygen occurs on the working electrode and the counter electrode, and the electric charge is released to form a current. The magnitude of the generated current is related to the concentration of ethylene oxide. It is proportional to the size of the test current to determine the level of ethylene oxide concentration.

Datasheet:

Response time (T90)	≤120S
Bias	300mV
Load resistance	(recommended) 10 Ω
Repeatability	＜2﹪Output value
Stability (/month)	＜2﹪
Output Linearity	Linearity
Zero drift	(-20℃～+40℃) 4ppm
Operating temperature range	﹣20℃～+50℃
Humidity range	15﹪~90﹪RH without condensation
Working pressure range	Standard atmospheric pressure ±10%
Service life	2 years

Product Tags:

Constant Potential Electrolytic Sensor

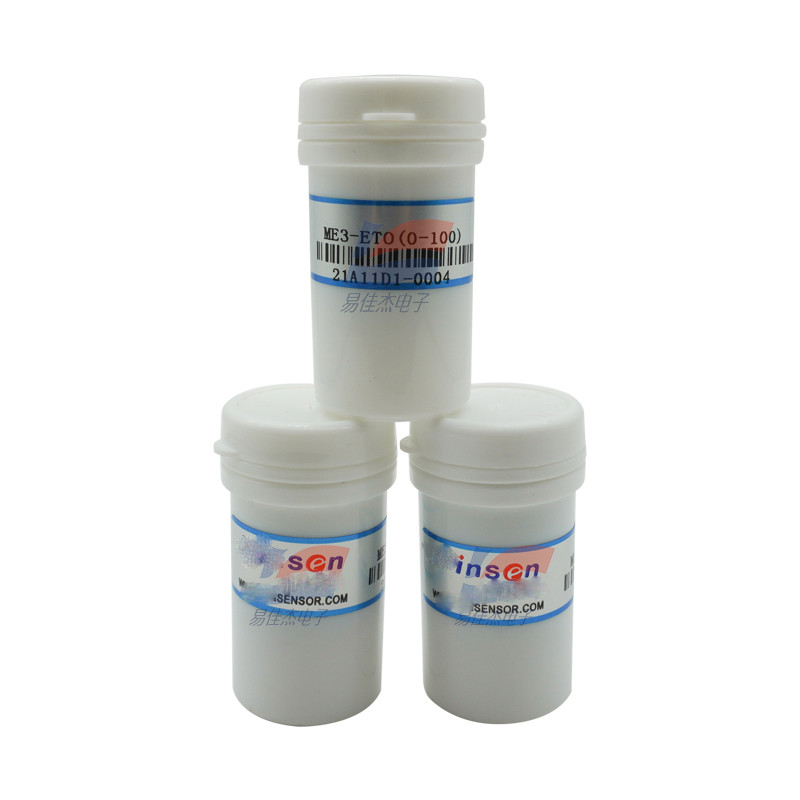

ME3-ETO Ethylene Oxide Sensor Constant Potential Electrolytic Sensor Images
