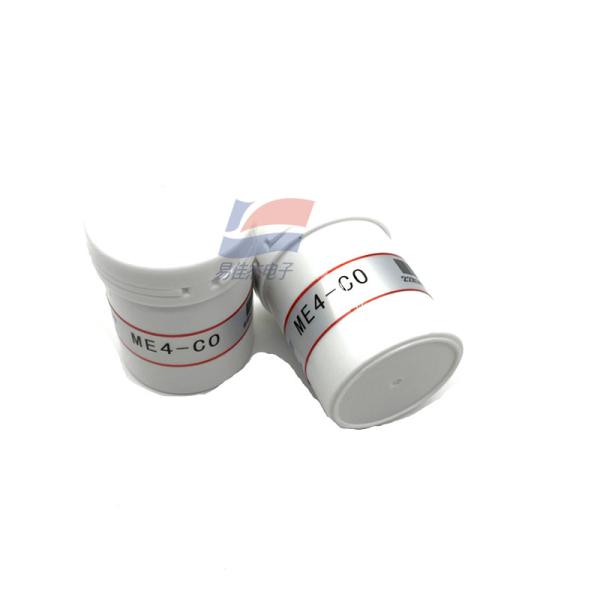

ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions

  • 1
  • 2

Brand Name : Winsen

Model Number : ME4-CO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5Workingdays

Packaging Details : Standard Box

Detection : Gas carbon monoxide (CO)

Range : 0-1000ppm

Maximum measurement limit : 1500ppm

Sensitivity : (0.080±0.02)uA/ppm

Contact Now

ME4-CO Carbon Monoxide Sensor CO Redox reactions

ME4-CO sensor is a constant potential electrolytic CO sensor. CO and O2 undergo corresponding redox reactions on the working electrode and the counter electrode, respectively, and release charges to form a current. The generated current is proportional to the CO concentration. The CO concentration can be determined by testing the current.

Main application
Widely suitable for carbon monoxide detection in petroleum and petrochemical, metallurgy, mining and other industrial places and environmental protection

Datasheet:

Resolution 1ppm
Response time (T90) ≤25s
Bias 0mV
Load resistance (recommended) 10Ω
Stability (/month) <5%
Zero drift (-20℃-40℃) 9ppm
Temperature range -20℃~50℃
Humidity range 15﹪~90﹪RH
Pressure range Standard atmospheric pressure ±10%
Detection life 2 years (in air)

ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions
