NO-A1 NO-AE Electrochemical Gas Sensor Nitric Oxide Sensor NO Sensor Industry Standard Size For Portable Gas Detectors Portable Safety Instruments

Model Number : NO-A1 NO-AE

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5work days

Range : 250 ppm NO limit of performance warranty

Sensitivity : 320 to 480 nA/ppm in 50ppm NO

Response time t90 : < 45s from zero to 50ppm NO

Resolution : < 0.2 RMS noise (ppm equivalent)

Temperature range : -30 to 50°C

Pressure range : 80 to 120 kPa

Humidity range : 15 to 90 % rh continuous

Weight : < 6 g

Contact Now

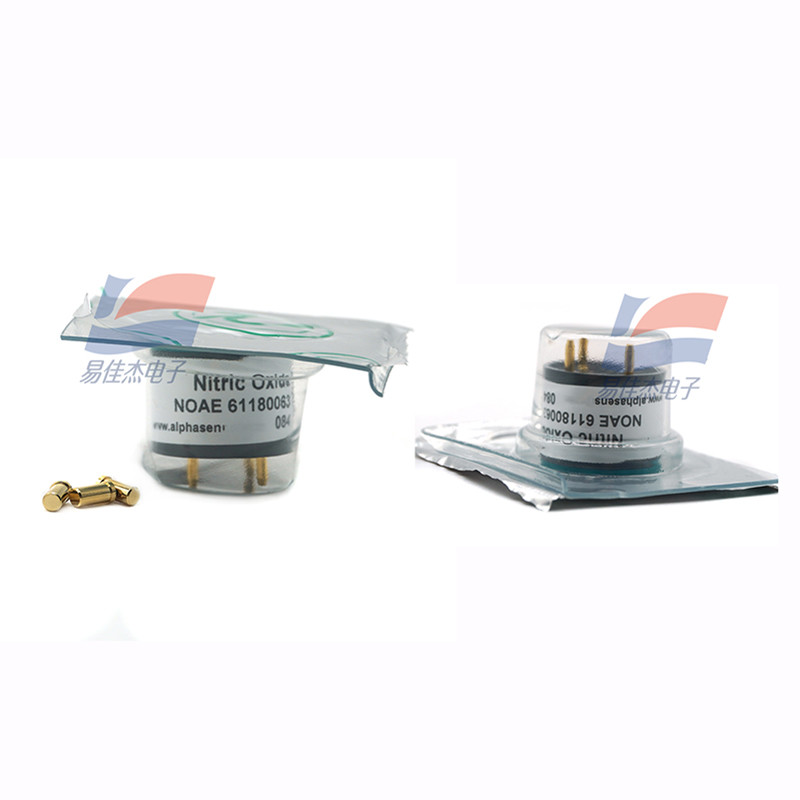

NO-A1 Nitric Oxide Sensor (NO Sensor) Description
Alphasense Nitric Oxide gas sensors operate using proven fuel cell technology.

NO-A1 Nitric Oxide Sensor size:
20mm diameter, the industry standard size for portable gas detectors


The NO range provides OEMs with reliable sensors for use in a number of high volume applications. Strong signal levels combined with low zero current allows resolution to 200 parts per billion (ppb) whilst giving linear outputs to as high as 250ppm. The sensors are suitable for inclusion in fixed installation sensing heads, portable safety instruments, urban air monitoring and stack gas analysers.

Alphasense NO sensors provide a significant improvement in stability of response to transient relative humidity changes.

The NO sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance. The leakproof housing is moulded with a colour coded top for ease of identification.

NO-A1 Nitric Oxide Sensor NO sensor PERFORMANCE
SensitivitynA/ppm in 50ppm NO320 to 480
Response timet90 (s) from zero to 50ppm NO< 45
Zero currentppm equivalent in zero air0 to +2
ResolutionRMS noise (ppm equivalent)< 0.2
Rangeppm NO limit of performance warranty250
Linearityppm error at full scale, linear at zero and 50ppm NO+15 to +25
Overgas limitmaximum ppm for stable response to gas pulse800
NO-A1 Nitric Oxide Sensor NO sensor LIFETIME
Zero driftppm equivalent change/year in lab air< 0.3
Sensitivity drift% change/year in lab air, monthly test< 5
Operating lifemonths until 80% original signal (24 month warranted)> 24
NO-A1 Nitric Oxide Sensor NO sensor ENVIRONMENTAL
Sensitivity @ -20°C% (output @ -20°C/output @ 20°C) @ 50ppm83 to 94
Sensitivity @ 50°C% (output @ 50°C/output @ 20°C) @ 50ppm98 to 104
Zero @ -20°Cppm equivalent change from 20°C< 0 to -1
Zero @ 50°Cppm equivalent change from 20°C< 3 to 16
NO-A1 Nitric Oxide Sensor NO sensor CROSS SENSITIVITY
H2S sensitivity% measured gas @ 20ppm H2S< 30
NO2 sensitivity% measured gas @ 50ppm NO2< 5
Cl2 sensitivity% measured gas @ 10ppm Cl2< 15
SO2 sensitivity% measured gas @ 20ppm SO2< 3
H2 sensitivity% measured gas @ 400ppm H2< 0.1
CO sensitivity% measured gas @ 400ppm CO< 0.1
NH3 sensitivity% measured gas @ 20ppm NH3< 0.1
CO2 sensitivity% measured gas @ 5% Vol CO2< 0.1
NO-A1 Nitric Oxide Sensor NO sensor KEY SPECIFICATIONS
Bias voltagemV (working electrode potential is above ground)+300
Temperature range°C-30 to 50
Pressure rangekPa80 to 120
Humidity range% rh continuous15 to 90
Storage periodmonths @ 3 to 20°C (stored in sealed pot)6
Load resistorΩ (recommended)10 to 47
Weightg< 6


NO-A1 NO-AE Electrochemical Gas Sensor Nitric Oxide Sensor NO Sensor Industry Standard Size For Portable Gas Detectors Portable Safety InstrumentsNO-A1 NO-AE Electrochemical Gas Sensor Nitric Oxide Sensor NO Sensor Industry Standard Size For Portable Gas Detectors Portable Safety Instruments
