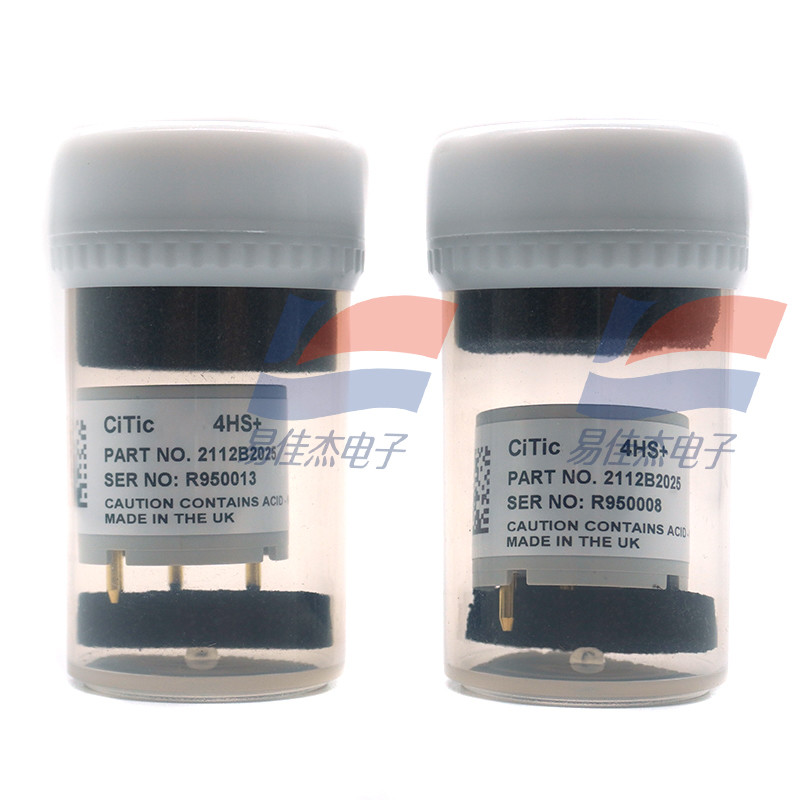

4HS+ Hydrogen Sulfide (H2S) Gas Sensor Part Number: 2112B2025 Industry Leading Reliability

Model Number : 4HS+

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 work days

Operating Principle : 3-electrode electrochemical

Measurement Range : 0-100 ppm H2S

Maximum Overload : 500 ppm H2S

Sensitivity* : 0.7 ± 0.15 μA/ppm

Response Time (T90)* : 20 seconds

Baseline Offset (clean air)* : < ±0.5 ppm equivalent

Contact Now

4HS+ Hydrogen Sulfide (H2S) Gas Sensor Part Number: 2112B2025 Industry leading reliability

IMPORTANT NOTE:
Connection should be made via PCB sockets only.
Soldering to the pins will seriously damage your
sensor and invalidate the warranty.
All performance data is based on conditions at
20°C, 50%RH and 1013mBar, using City Technology
recommended circuitry. For sensor performance data
under other conditions, please contact City Technology.

Storage Life	6 months in sealed container
Expected Operating Life	2 years in air
Recommended Storage Temp	+10°C to +30°C
Long Term Output Drift	< 20% per annum
Maximum s/c Current	<1.0 A

4HS+ Hydrogen Sulfide (H2S) Gas Sensor Part Number: 2112B2025 Industry Leading Reliability
