4H2S-AS Hydrogen Sulfide Gas Sensor P/N 114-020-120 Maximum Load 500 ppm Sensitivity 800±200 nA/ppm positive signal

Model Number : 4H2S-AS

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 work days

Working principle : Electrochemistry three electrodes

Detection range : 0-100 ppm Outline size diagram

Maximum load : 500 ppm

Bottom current : < ± 0.4μA

Zero drift : (-20 to 50) -0.2 to 1 ppm

Sensitivity : 800±200 nA/ppm (positive signal)

Contact Now

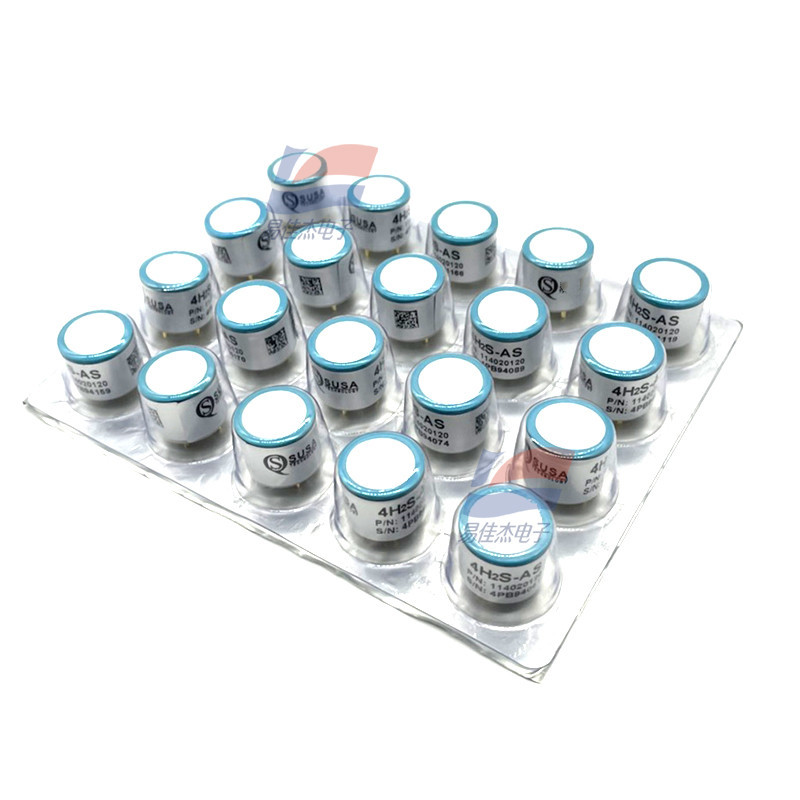

4H2S-AS Hydrogen Sulfide Gas Sensor (P/N: 114-020-120)

Electrical property:
Resolution 0.1ppm
Bias 0 mV (none)
Recommended resistance 5-30Ω

Physical property:
Weight 5 g
Azimuth requirement None

Working environment:
Intended use for most life safety detectors
Operating temperature range -40 to 50°C
Operating pressure range 800-1200 mbar
Operating humidity range 15%-95% RH (non-condensing)

recommended storage environment 0-20°C in a sealed container
Expected service life in the air for 24 months
Storage period original package 6 months
Warranty period 12 months

4H2S-AS Hydrogen Sulfide Gas Sensor P/N 114-020-120 Maximum Load 500 ppm Sensitivity 800±200 nA/ppm positive signal
