Model Number : 4CM
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time : 3-5workingdays
Detection Range : 0 to 2000 ppm
Filter : To remove acid gases See note on Page 2
Filter Capacity : > 20000 ppm hours
Sensitivity : 70 ± 15 nA/ppm
Response Time (T90) : ≤10 s at 20°C
Recovery Time : < 90 s (typically < 30 s)
4CM Electrochemical carbon monoxide sensor Fast response and recovery time
Key Features & Benefits:
• Fast response and recovery time
• Superior long-term performance at temperature and humidity extremes
• Meets sensor requirements described in AQ6205-2006 and EN45544
IMPORTANT NOTE:
Connection should be made via recommended
mating parts only. Soldering to the sensor will
result in damage and invalidate the warranty.
All performance data is based on conditions
at 20°C, 50% RH and 1013 mBar, using City
Technology recommended circuitry and flow rates.
Temperature data gathered on a sample of
144 sensors. Data average ± 4.5 standard
deviations
Resolution | <1 ppm typical |
Bias Voltage | Not required |
Housing Material | Noryl 110 |
Pin Material | Gold over nickel plated brass |
Weight | 5 g (nominal) |
![]() |

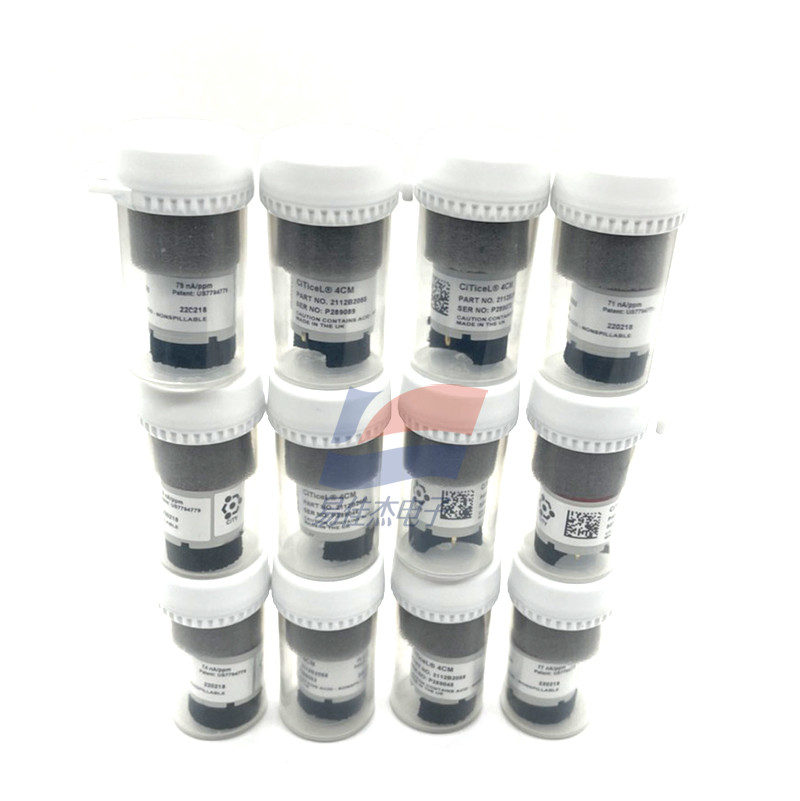

4CM Electrochemical Carbon Monoxide Sensor Fast Response And Recovery Time Images |
